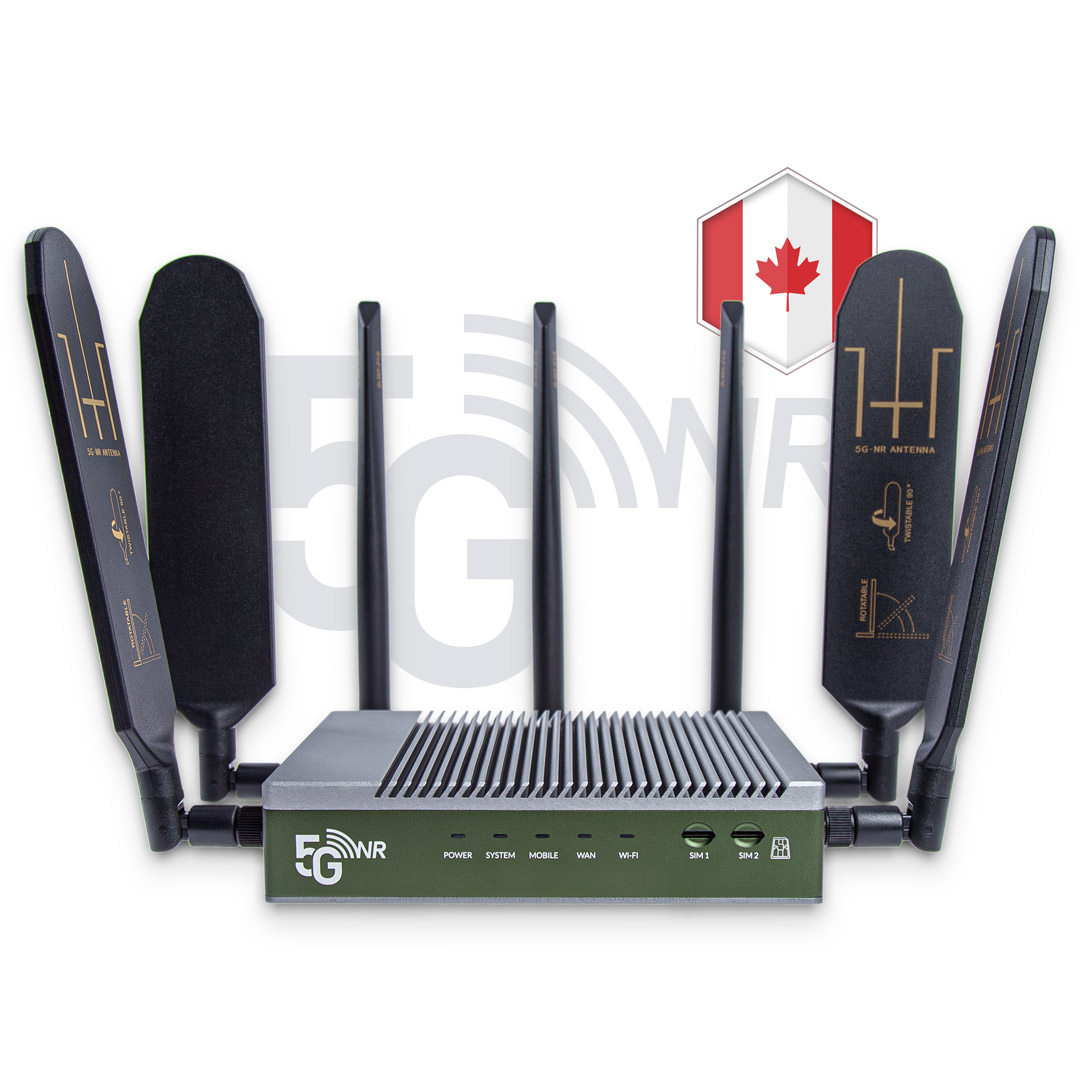

5G Home Internet Gateway Dual SIM
Multiple-WAN 5G gateway home internet with WiFi6 and Ethernet
C$609
Enhance your network with a 5G home internet gateway. This dual SIM router allows you to share 5G cellular internet with over 200 devices while improving backup for your business internet. The 5G mobile internet gateway supports 4G and 5G networks and offers Ethernet connectivity, WiFi relay, and load balancing for reliable performance.
Multiple-WAN 5G gateway home internet with WiFi6 and Ethernet
Stay connected with the 5G home internet gateway Unlocked modem – Dual SIM failover and LTE fallback
5G Router with WiFi6 Hotspots and Ethernet Ports
Your multiple LAN/WAN cellular internet gateway

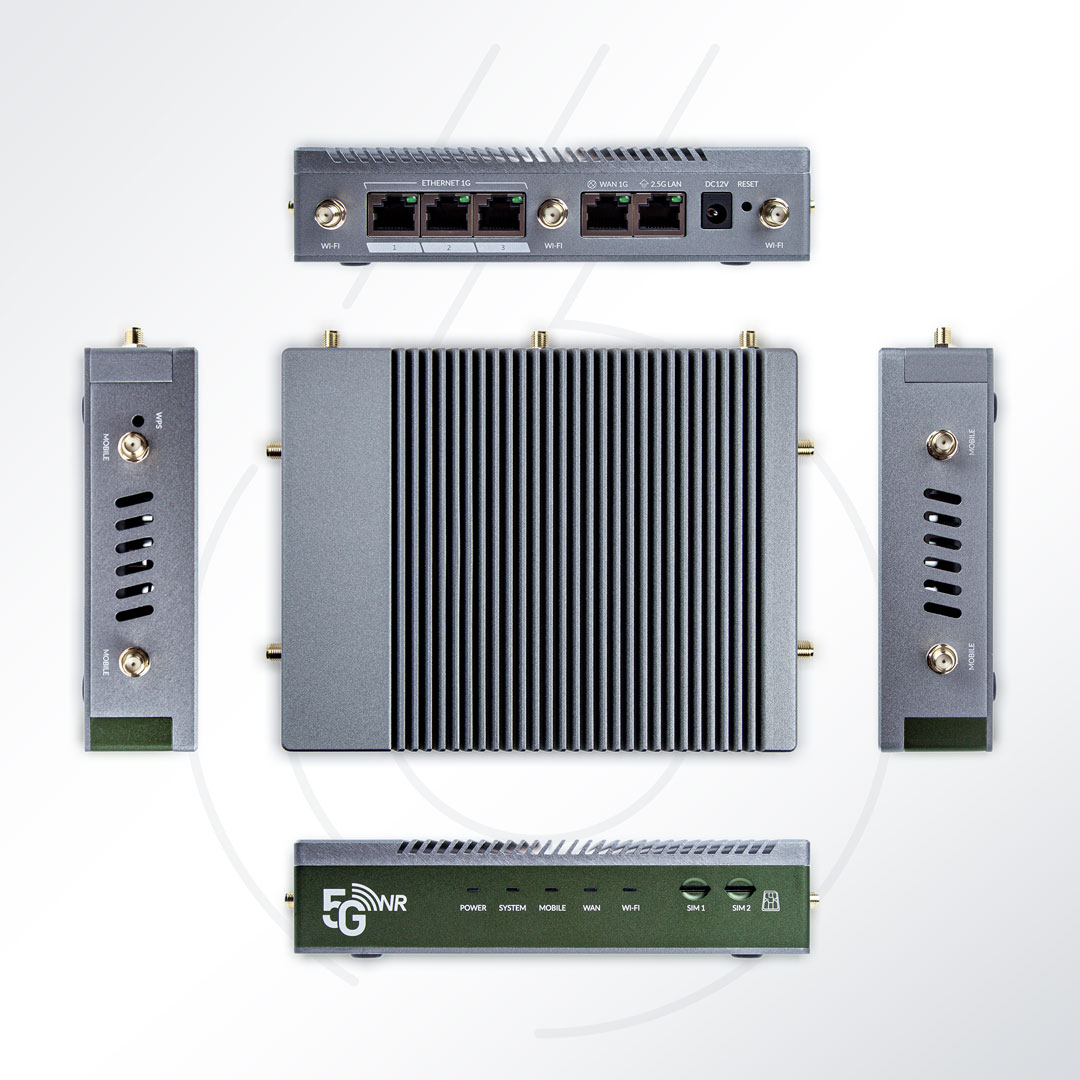

Rugged cellular router enclosure with heat-sink cover
Industrial cooling for 24/7 reliable high performance
The unlocked X62 5G SIM card modem provides seamless access to global 4G 5G cellular networks. It’s compatible with unlocked SIM cards, active data plans, and virtual carriers. You can flexibly choose preferred carriers and data plans.
Featuring a 5G-modem first design with a 4×4 MIMO antenna array and 5x carrier aggregation connectivity over Sub-6 GHz SA/NSA networks. Up to 300–500 Mbps speed in field tests. Check more specs.
Ensure a stable mobile internet with 3G/4G fallback. Utilizing 4G for NSA connections and combining more bands to improve coverage.

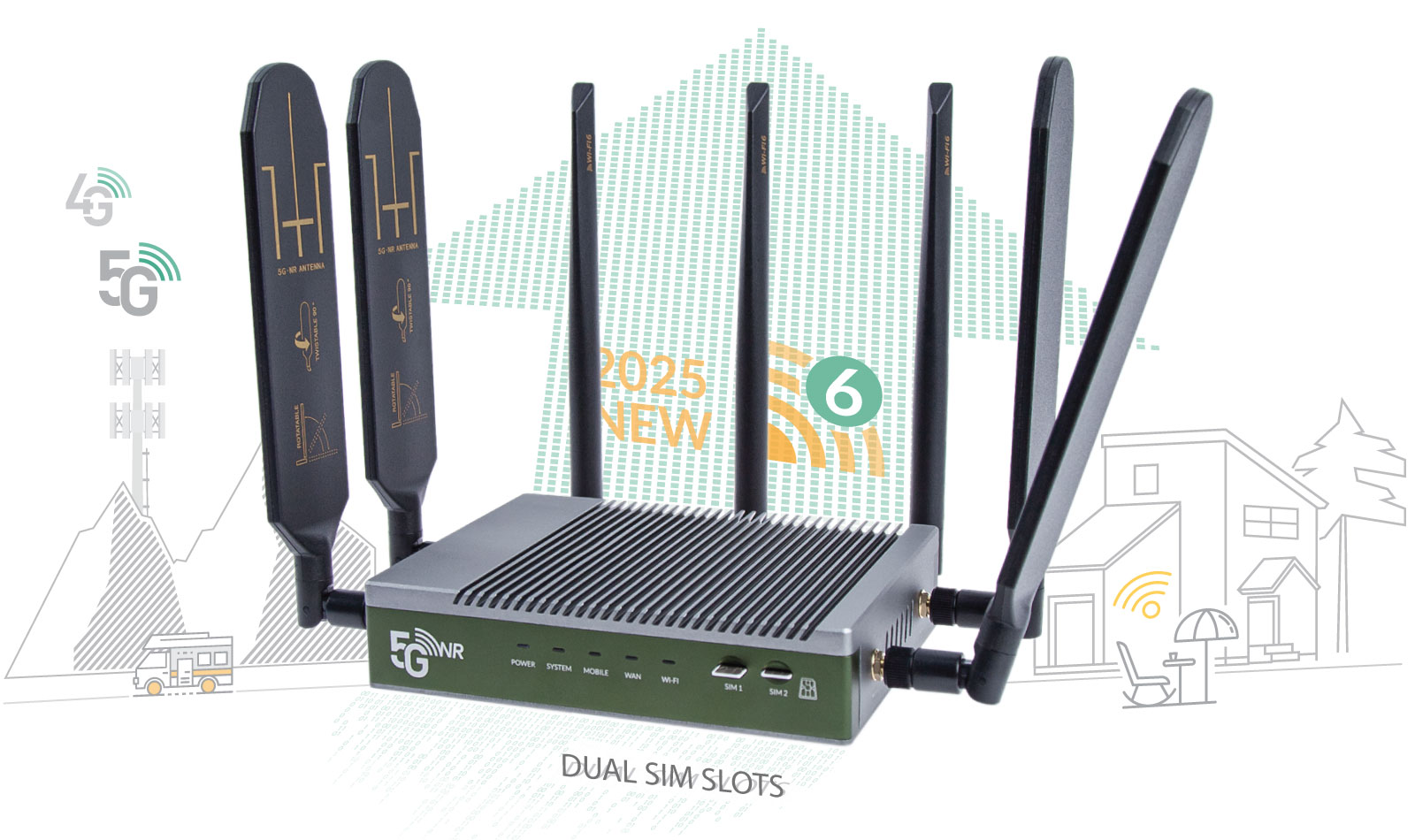

Dual SIM card slots improve network reliability by automatically switching between SIM cards for better coverage or if one fails.
The 5G cellular WiFi6 router works independently as a powerful home business internet gateway with wired WAN and cellular backup internet. Making it ideal for homes, offices, travelers, temporary events, and industrial applications.
Featuring modern 3000Mbps WiFi 6 hotspots and a 2.5Gbps LAN port for bandwidth-intensive devices. Integrated powerful local network management.

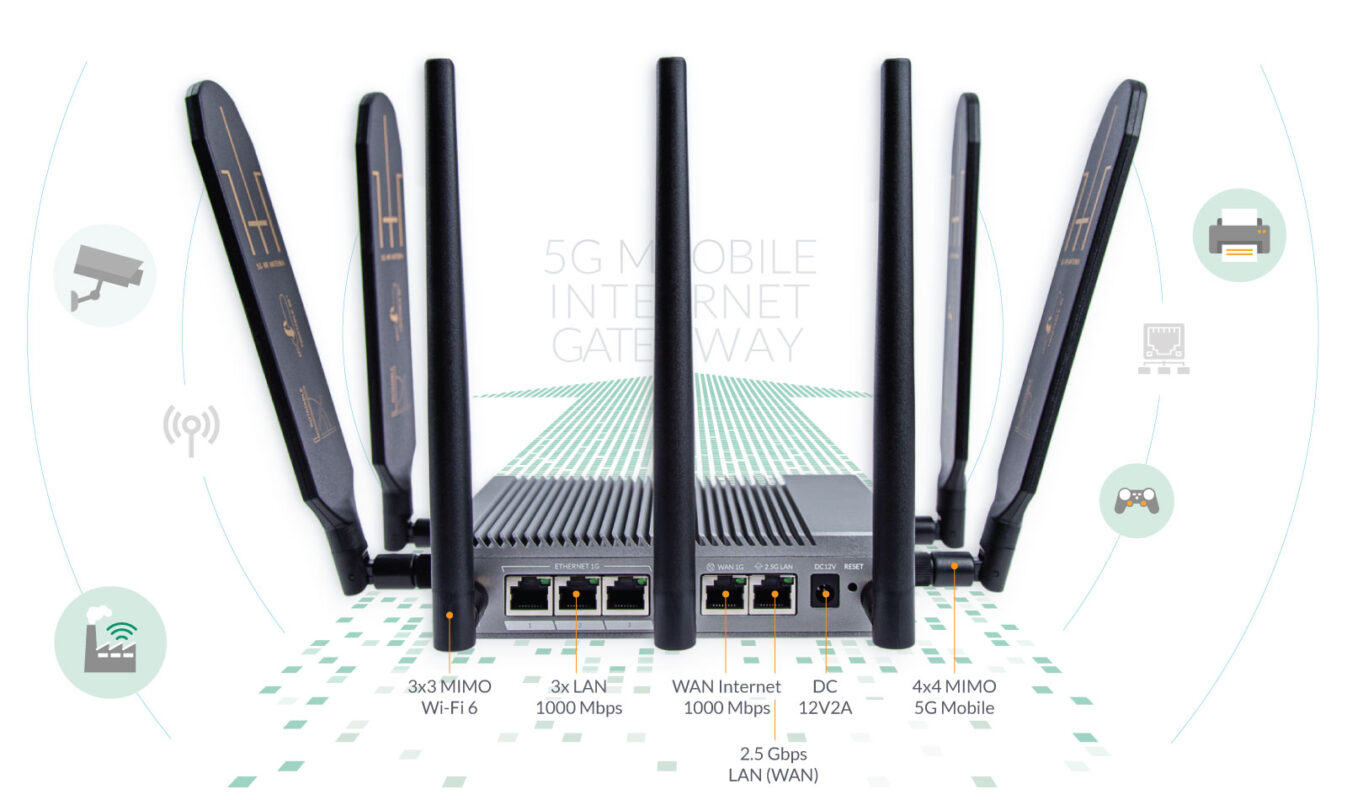

In addition to cellular internet access, it expands internet connectivity through a wired WAN port and WiFi relay with load-balancing traffic distribution.
Rural, Urban Homes / Offices
Video meetings, live streaming, online gaming, business operations, and remote work without the need for fixed landlines.
IoT, Security, Industry
Empower mission-critical sensors, cameras, and machines with secure real-time communication and remote monitoring management.
RVs, Motors, Cabins, Events
Set up temporary and flexible cellular internet for travelers and events through the widely deployed 4G/5G networks with dual SIM failover.

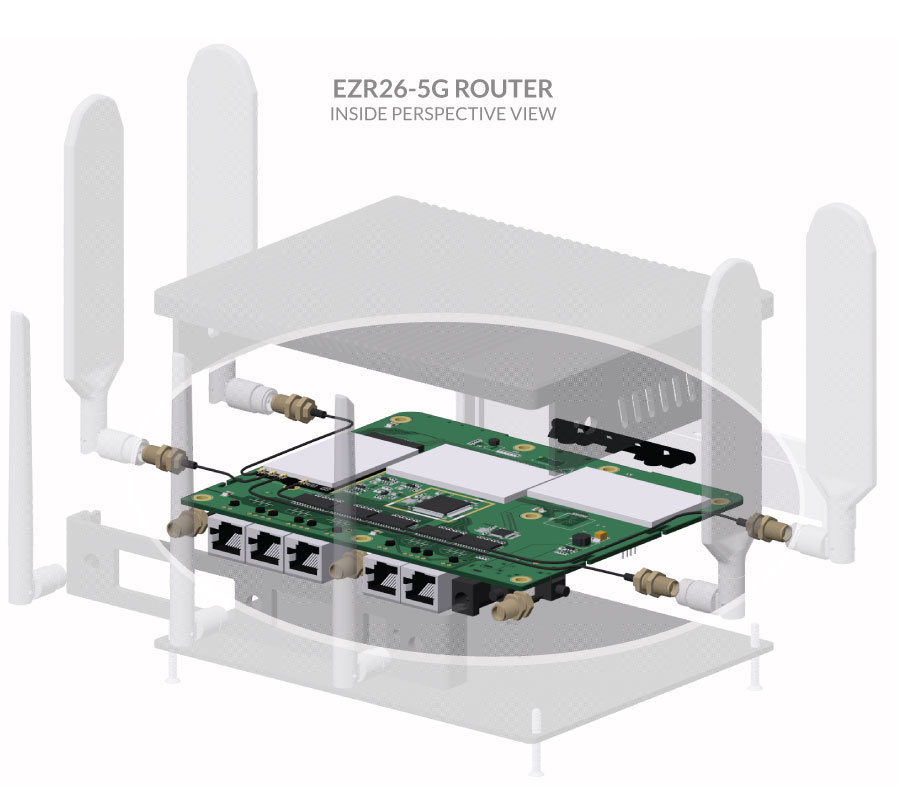

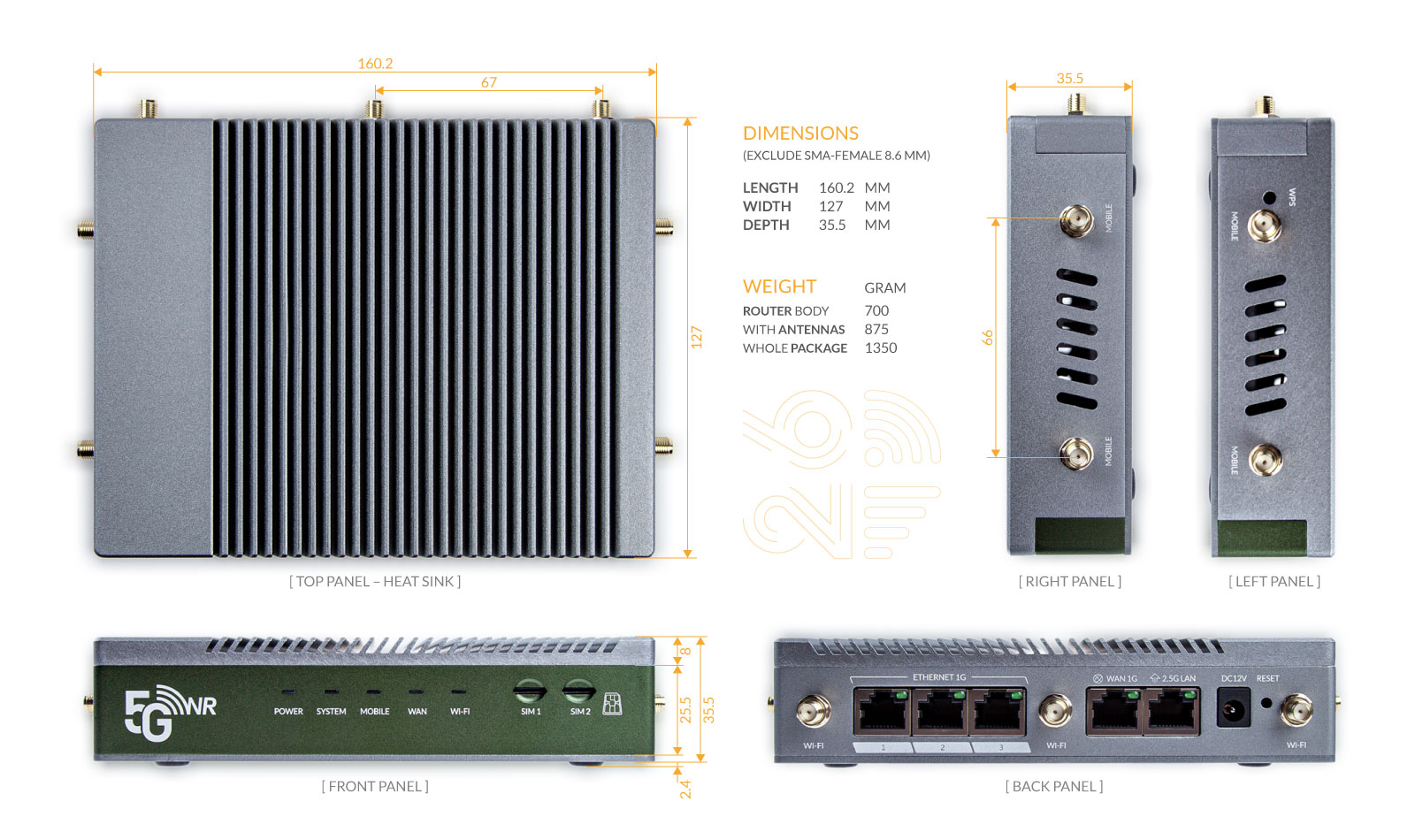

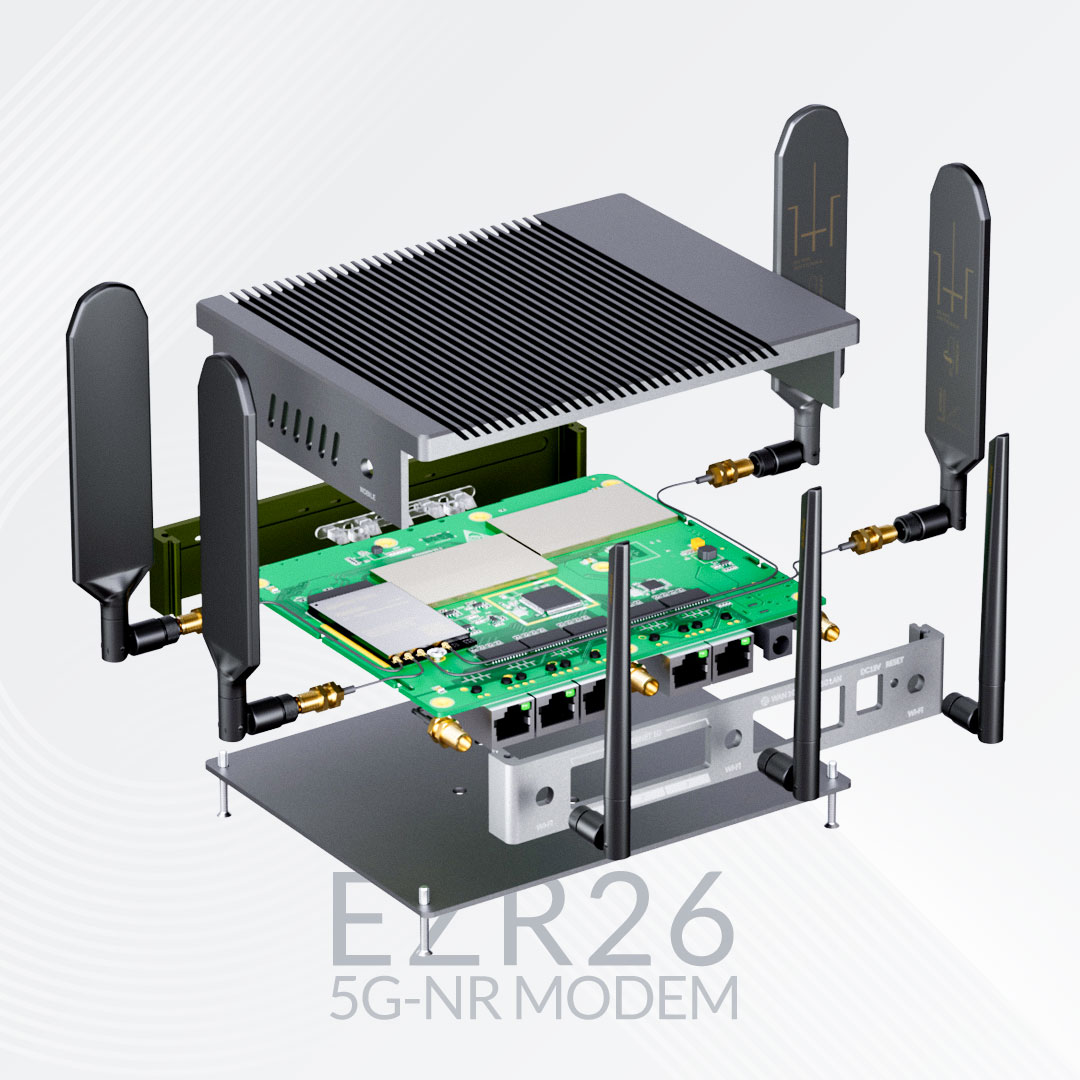

Explore the internal structure and dimensions of the sturdy industrial designs. Below are the exclusive features you should not miss. Click the right image to get a clearer view.

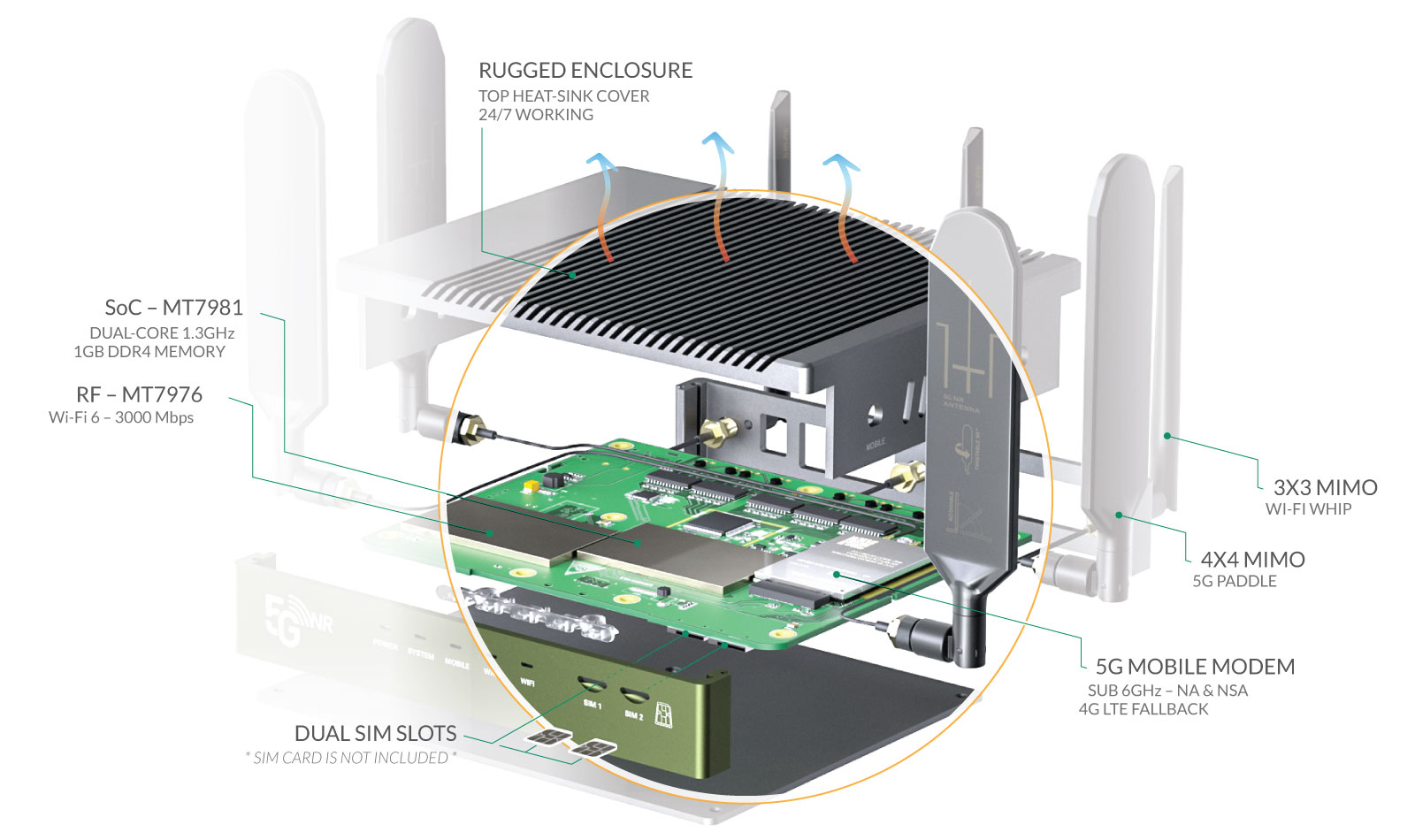

Best Passive Cooling System – Free-flow 8mm top heat sink cover and convective air slots prevent thermal throttling, ensuring 24/7 continuous high performance.

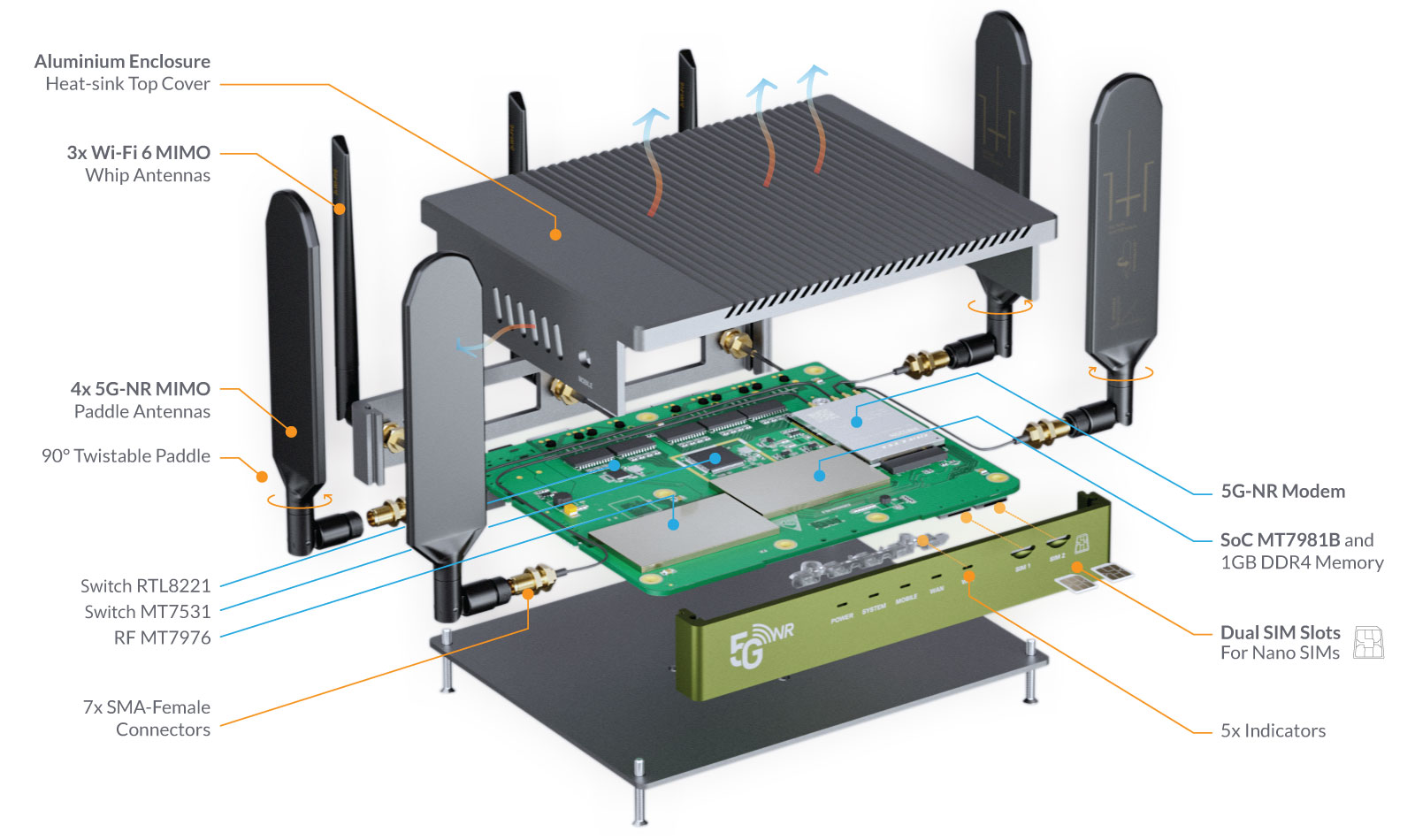

Powered by a 1.3GHz dual-core SoC and WiFi 6 chipset, it includes indicators and reinforced SIM slots on the front.

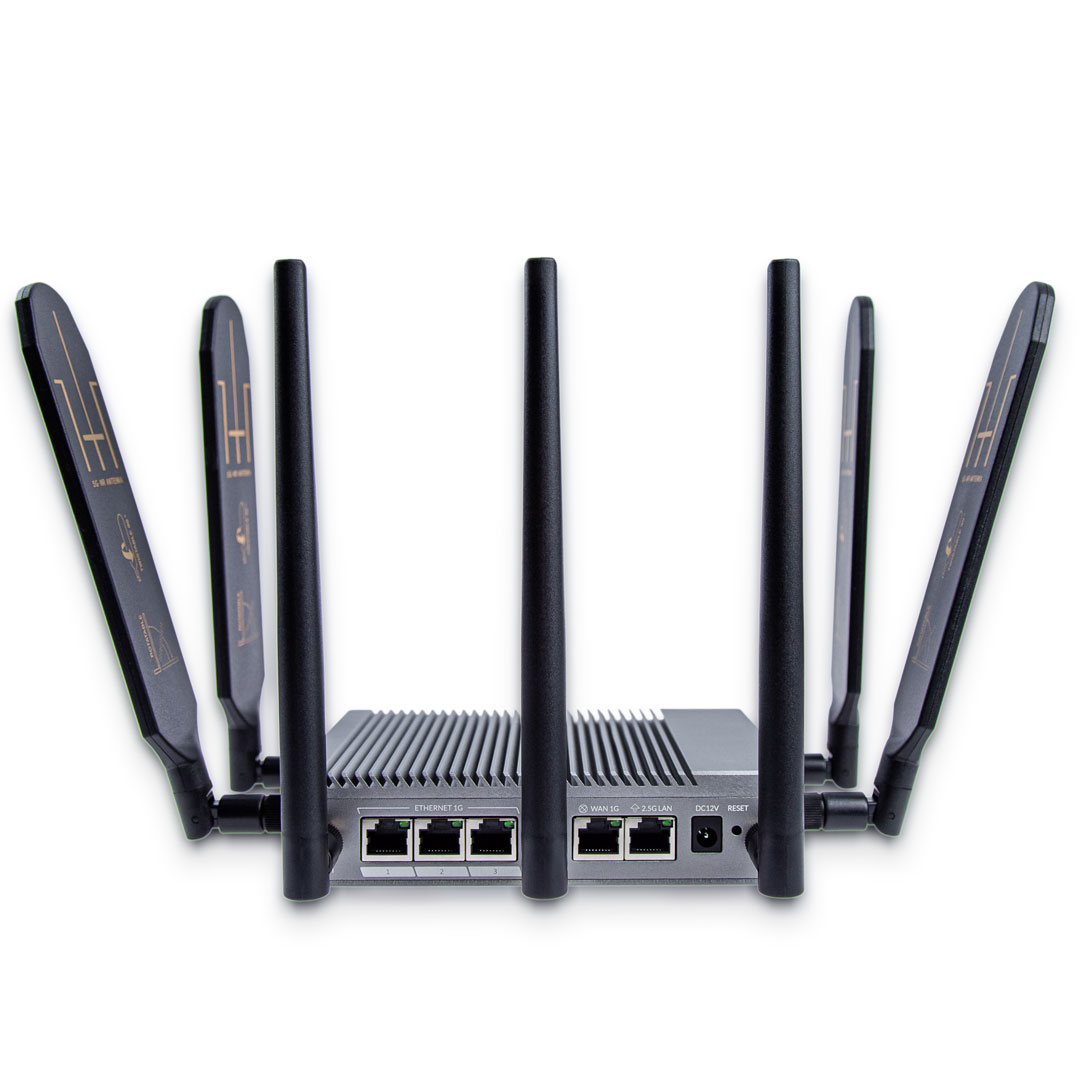

Optimized antenna arrays with high-gain 3×3 WiFi MIMO and 4×4 5G MIMO deliver superior wireless throughput.

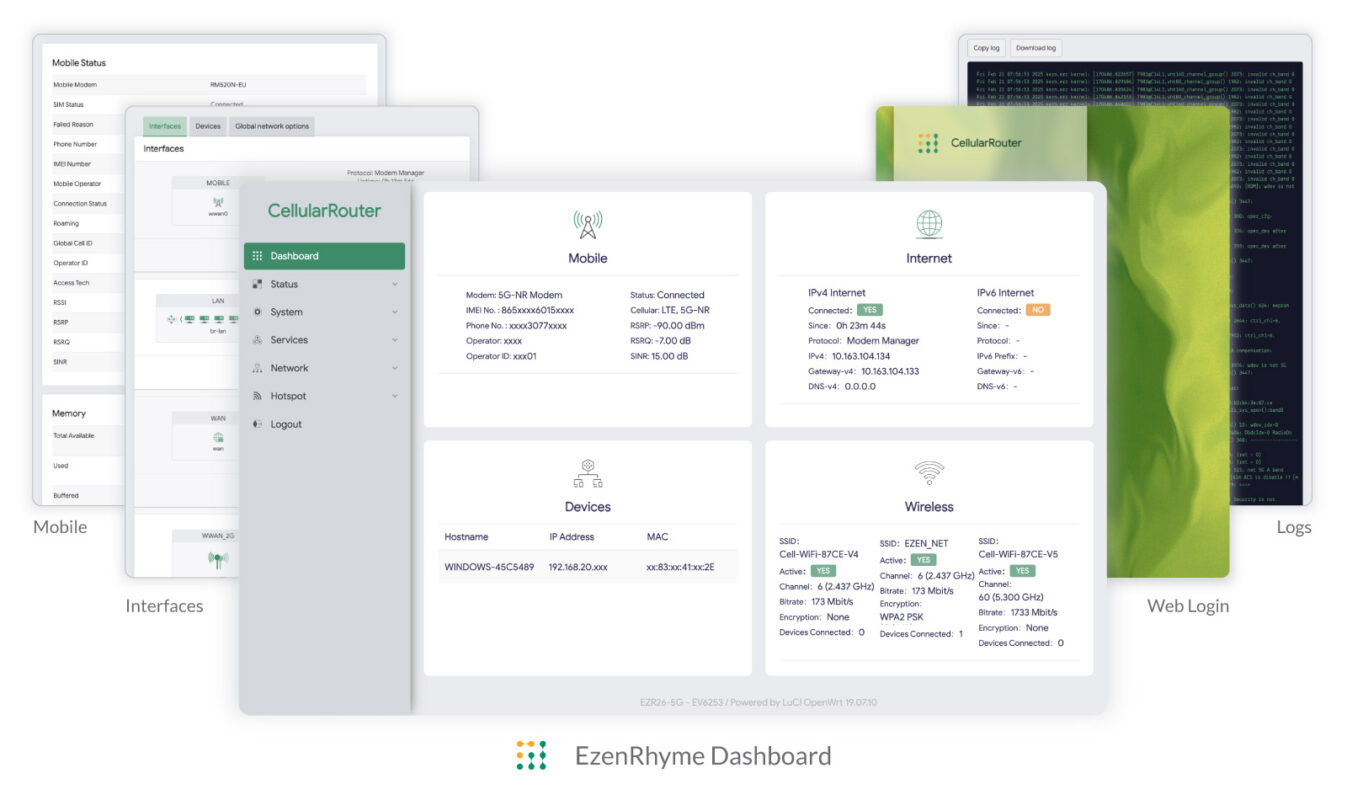

Built on open source LuCI OpenWrt project, the 5G router firmware is optimized for cellular modem and offers professional features below. Contact us to request an online demo or discuss your needs.
Advanced cellular protocols, keepalive mobile watchdog, cell IP passthrough, and 4G/5G band network selection.
Secure WiFi encryption, guest WiFi, wireless WiFi relay repeater, MAC filter, and scheduled WiFi control.
Full control root privileges allow QoS, VPN, and install new software. Prebuilt free remote cloud access.

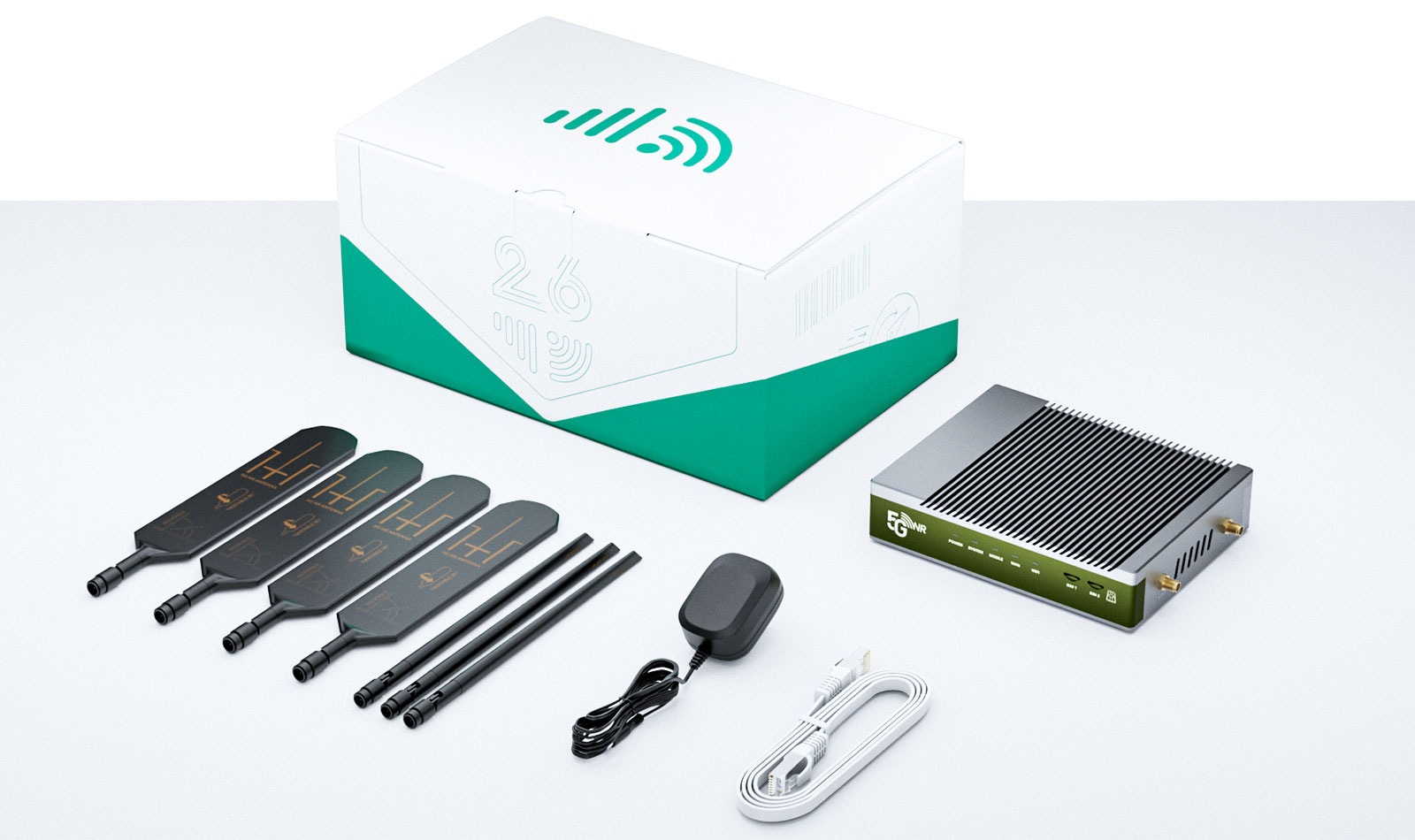

You will receive the below components, and rest assured, a 15-day money-back warranty and a 1-year quality guarantee. Our teams are committed to providing outstanding customer service and professional technical assistance, ensuring your success with the 5G router!
1 x 5G cellular WiFi6 router
4 x 5G paddle antenna
3 x WiFi 6 whip antenna
1 x Power adapter Canada plug
1-meter LAN cable
You must be logged in to post a review.

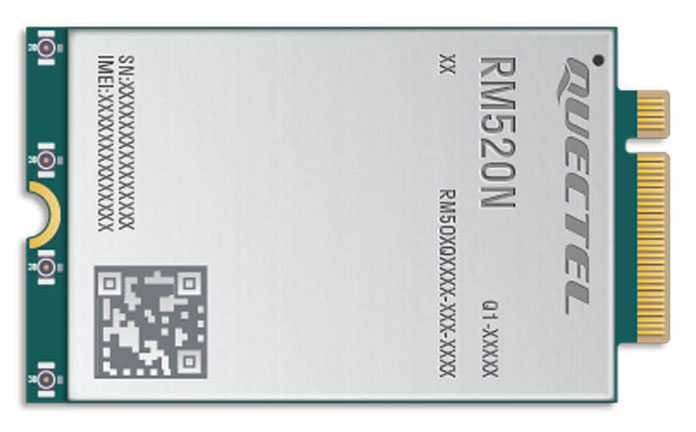

The RM520N 5G-NR mobile SIM modem is a Qualcomm x62 5G sub-6GHz M.2 module.
Specification | 5G NR | 4G LTE |
Category: |
3GPP Release 16 (R16) |
Download CAT19 Upload CAT18 |
Bands: | 5G-NR NSA & SA: N1 2 3 5 7 8 12 13 14 18 20 25 26 28 29 30 38 40 41 48 66 70 71 75 76 77 78 79 |
FDD: B1 2 3 4 5 7 8 12 13 14 17 18 19 20 25 26 28 29 30 32 66 71 TDD: B34 38 39 40 41 42 43 48 LAA: 46 |
Download Speed: | 5G NSA: 3.4 Gbps 5G SA: 2.4 Gbps |
1.6 Gbps |
Upload Speed: | 5G NSA: 550 Mbps 5G SA: 900 Mbps |
200 Mbps |
3G WCDMA: | Band 1 2 4 5 8 19 DL 42 / UL 5.76 Mbps |
|
Temperature: | Working: -30°C ~ +75°C | |
Modem Cert.: | GCF PTCRB CE Anatel CCC RCM IC FCC JATE TELEC KC NCC RoHS | |
Region: | Global |
Note: The presented download and upload speed are theoretical max rates, and the actual speed rate depends on network conditions.
Chipset: | SoC – MediaTek MT7981 RF – MediaTek MT7976 Switch – MediaTek MT7531 |
Clock Speed: | Dual-core 1.35GHz |
Memory: | DDR4 1GB |
Flash: | NAND 128MB |
RJ45 Port: | 4x 1000 Mbps and 1x 2500 Mbps |
Modem Socket: | M.2 Key-B |
SIM Card Slot: | 2x Nano SIM (12.3×8.8 mm) |
Indicator: | Power, System, Mobile, WAN, and WiFi |
Buttons: | WPS and Reset |
Temperature: | Working -30 to +70 °C Storage -40 to +85 °C |
Humidity: | 0% – 100% RH |
Power Adapter: | AC 100–240Volt 50/60Hz 0.5Amps DC 12Volt ⎓ 2Amps |
Wi-Fi Band: | 2.4 GHz | 5.8 GHz |
Speed Rate: | 574 Mbps | 2402 Mbps |
MIMO: | 2x MIMO 2T2R | 3x MIMO 3T3R |
Wi-Fi Standard: | IEEE 802.11 ax/n/b/g | IEEE 802.11 ax/ac/n/a |
Frequency: | 2412 – 2472 MHz | 5180 – 5825 MHz |
Output Power: | 20 ± 2 dBm | 18 ± 2 dBm |
Bandwidth: | 20/40 MHz | 20/40/80/160 MHz |
Wi-Fi Capacity: | Max 512 / Recommended 200 clients | |
Modulation: | Max 1024-QAM | |
Wi-Fi Efficiency: | OFDMA / MU-MIMO / BSS Color |
4 x 5G Antenna: | 700~960 / 1710~2170 / 2300~2700 / 3400~4900 MHz -1~3±1dBi Gain / ≤ 3.5 V.S.W.R. Size: Width 42mm Length 179~209mm Material: ABS |
3 x Wi-Fi Antenna: | 2.4GHz Wi-Fi: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 1.92 5.8GHz Wi-Fi: 5150~5850MHz Size: Ø13 x 201 mm |
Connector: | SMA-Male with center pin |
Polarization: | Vertical |
Impedance: | 50 Ω |
SKU: EZR24-A520 | |
X62 5G-NR modem max 3.4Gbps | |
4G-LTE failover to CAT19 | |
Dual 2.4/5.8G Wi-Fi 1200Mbps | |
WAN & 4xLAN Gigabit RJ45 Ports |
SKU: EZR24-A012 | |
CAT12 LTE modem download 600Mbps | |
3x times upload speed 150Mbps | |
Dual 2.4/5.8G Wi-Fi 1200Mbps | |
WAN & 4xLAN Gigabit RJ45 Ports |
SKU: EZR34T-A520 | |
Global 5G SIM Modem - max 3.4Gbps | |
Dual SIM slots. LTE Cat.19 fallback. | |
5G-NR WiFi FRP external antennas | |
Power over Ethernet - 1Gbps LAN | |
US Patented IP67 waterproof enclosure |
SKU: EZR23T-A4 | |
4G LTE CAT4 Modem - 150Mbps | |
Dual Nano SIM Card Slots | |
Long-range WiFi 100~200 yards | |
Wide-range DC and PoE Powers |
