4G Router in Outdoor
IP67 rated case withstand extreme weather and rugged deployments.
❄ Receive stronger mobile signals than the indoor
❄ Reduce signal loss on the antenna cable
❄ Get powerful Wi-Fi hotspot in the outside yard
Canada Outdoor 4G Cellular Router – Dual SIM Card
C$486
Canada 4G cellular router uses dual SIM cards and provides internet on Wi-Fi and Ethernet. Cat4 cellular modem supports most of the Canadian cellular networks.
• Supports Canadian cellular networks including LTE bands 66 & 71
• Cat 4 cellular modem provides a max 150Mbps download speed
• MIMO Wi-Fi speed is 300Mbps and supports 57 concurrent users
• Router powered by single LAN cable from 48Volt PoE adapter
• IP67 rated waterproof case and built-in lightning protection
Out of stock
Outdoor WiFi Over 4G
INSERT A SIM CARD AND GET THE INTERNET
SUPPORT AT&T VERIZON CELLULAR NETWORKS

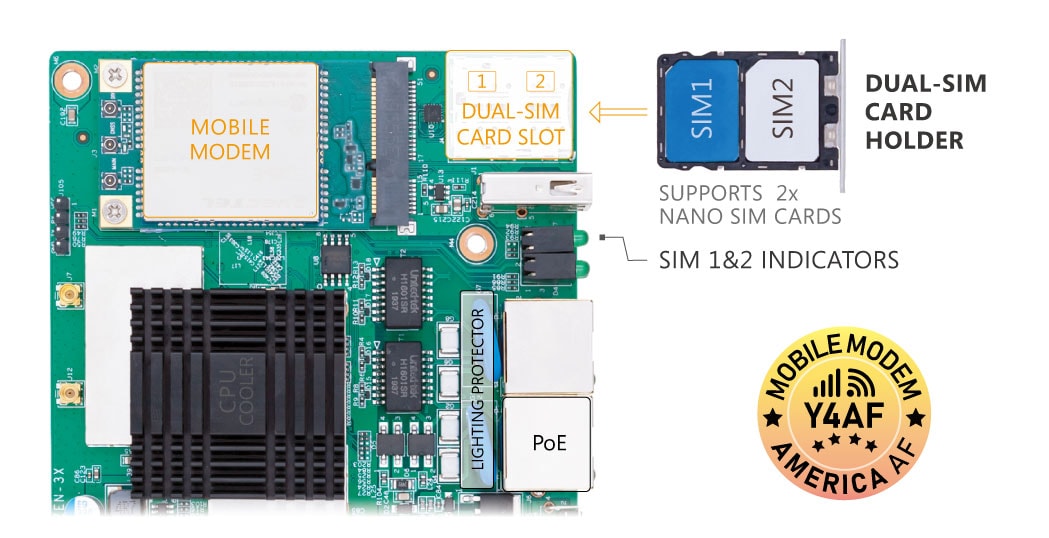

4G Cellular Router – Cat4 Modem with 2x SIM Slot
2020 newly upgraded outdoor 4G cellular router! Support double Nano-SIM cards. Connect to the SIM1 by default. Include a precise SIM cardholder.
Cat 4 cellular modem inside. Provide max 150Mbps download speed, and 50Mbps upload speed. The sensitive 4G mobile modem supports -101dBm 4G signal.
Support major 3G 4G LTE cellular networks in America ,including AT&T Verizon T-Mobile ,etc. all of the European 2G 3G and 4G LTE mobile networks. You can use both phone SIM or data SIM cards.
* The SIM card is excluded. Please use activated SIM cards in the router.
Cellular 4G Router with WiFi Hotspot & Ethernet
Powered by 640MHz CPU, the USA cellular 4G router provides 300Mbps Wi-Fi and 100Mbps Ethernet LAN. Provides internet connection to various devices.
Built-in 27dBm Wi-Fi booster, the 4G router creates a powerful wireless hotspot and covers up to 150~300 yards radius in open area. It can support up to 57 concurrent Wi-Fi users. You can adjust the Wi-Fi power or turn it off.
Connect switch, router, or computer to the LAN port on PoE adapter, and extend the 4G internet to an indoor area.
PoE 4G Router - Power over Ethernet
Comply with 802.3af/at PoE standard. The outdoor 4G router uses one single LAN cable for transmitting both power and data.The PoE adapter and 30-feet LAN cable are included in the box.
PoE 4G router supports max 328-feet LAN cable and also supports the 48Volt standard PoE switch.
Need to use on 12Volt or 24Volt DC power?
Install a PoE splitter in the router, and divide electric power to the DC socket.
Mobile 4G Router with External Antennas
Integrated MIMO technology, the mobile 4G router, uses 2T2R MIMO antennas to improve speed and reduce latency.
The mobile 4G router provides 4x type-N waterproof connectors to join the external WiFI & 4G antennas.
The N-female connectors offer low-loss connections. If you have a weak 4G signal reception or require to improve the WiFi signal coverage, you can easily upgrade the higher-gain antennas.
IP67 Waterproof 4G Outdoor Router
IP67 Waterproof
Anti dust and water immersion
Outdoor Lighting Protection
Common 6KV - Differential 1.5KV
Against Extreme Weather
Temperature -40°C ~ +80°C Celsius
Open Sources
Driver Installed
Plug-and-Play
Encryption
Remote Access
SSH Terminal

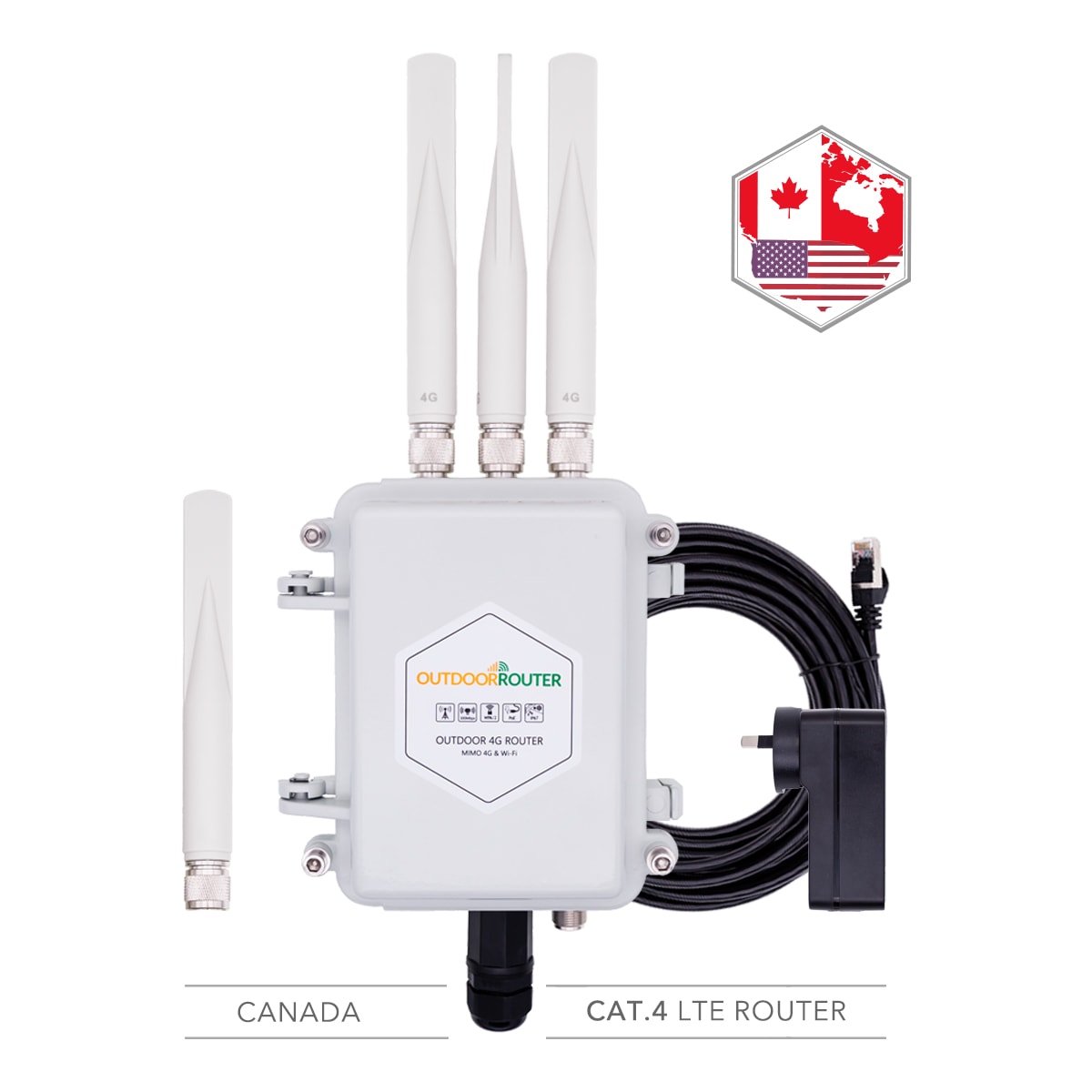

What Will You Get in the Package
Package Contents
1 x Canada Outdoor 4G Router
4 x Omni Antenna
1 x 30-feet LAN Cable
1 x 48V PoE Adapter
1 x Mounting Set & Tool
Be the first to review “Canada Outdoor 4G Cellular Router – Dual SIM Card”
You must be logged in to post a review.
Cat.4 Cellular Modem
| LTE Category: | CAT 4 |
| LTE Version: | 3GPP E-UTRA Release 10 |
| 4G Bands: | FDD LTE - B2/B4/B12 Download max 150Mbps / Upload max 50Mbps |
| 3G Bands: | TD-SCDMA Download max 4.2Mbps / Upload max 2.2Mbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C ~ +85°C |
| Working Area: | North America (USA and Canada) |
| Certification: | FCC / PTCRB / IC / AT&T / T-Mobile |
Hardware
| CPU: | Qualcomm Atheros QC9531 |
| Frequency: | 650MHz |
| Memory: | 128MB |
| Flash: | 16MB |
| SIM Card: | Standard SIM card (25x15mm) **Exclude** |
| LAN Port: | 1x10/100Mbps RJ45 port on PoE injector |
| Indicator: | Power & system |
| Consumption: | < 3 Watt |
| Temperature: | Working: -30 to 80°C Storage: -50 to 95°C |
| Humidity: | 10%~90% RH |
| Installation: | Pole mounted |
External Antenna
| 4G Omni Antenna: | Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.5 |
| Wi-Fi Antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.5 |
| Measurement: | Φ21×178mm |
| Connector: | N-male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
Wi-Fi Booster
| Wi-Fi standards: | IEEE 802.11 b/g/n & IEEE 802.3u |
| Transmission rate: | 300Mbps by 2T2R MIMO Wi-Fi |
| Frequency: | 2412~2484 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11n: 23±2dBm for OFDM mode 802.11g: 25±2dBm for OFDM mode 802.11b: 27±2dBm for CCK mode |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
Software
| Bootloader: | U-Boot v1.1.3 |
| Firmware: | OpenWrt v15.05.01 |
| Computer: | Windows XP Vista 7 8/8.1 MAC OS OS X10.7+ |
PoE
| Input power: | PoE: 48Volt |
| PoE standard: | 802.3af/at |
| Cable length: | Support 100 meters |
| Wiring: | Ethernet 1,2,3,6 / DC+ 4,5 / DC- 7,8 |
