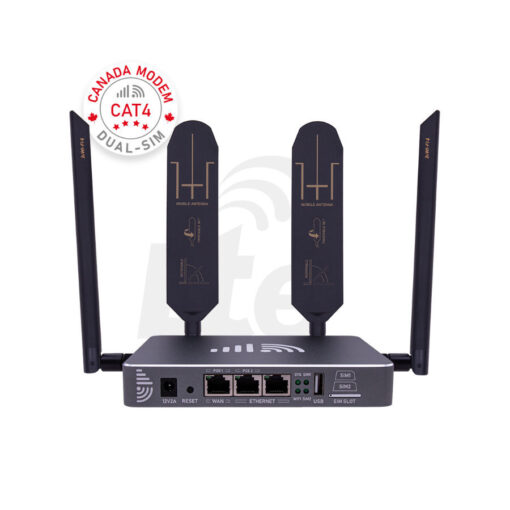

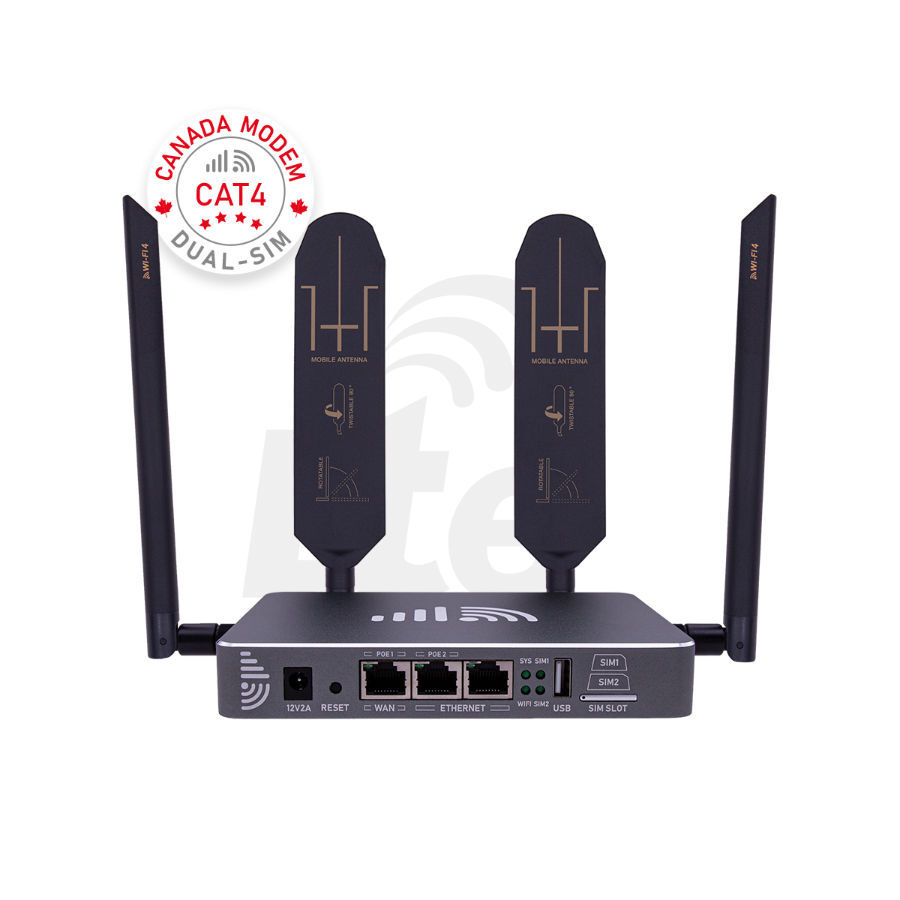

Canada 4G Router CAT4 Dual SIM Modem LTE WiFi
C$249
The cellular 4G router features by a CAT4 LTE modem, dual SIM card slots, and long-range WiFi hotspot. The rugged industrial LTE WiFi router is designed to provide reliable internet even in harsh conditions, it’s also integrated lighting protection.
- Canada CAT4 LTE modem – Supports 3G 4G and Band 66
- Standalone LTE WiFi router – Long-range WiFi and LAN ports
- Industrial-grade M2M router wide-range DC and PoE support
Canada 4G Router CAT4 WiFi LAN

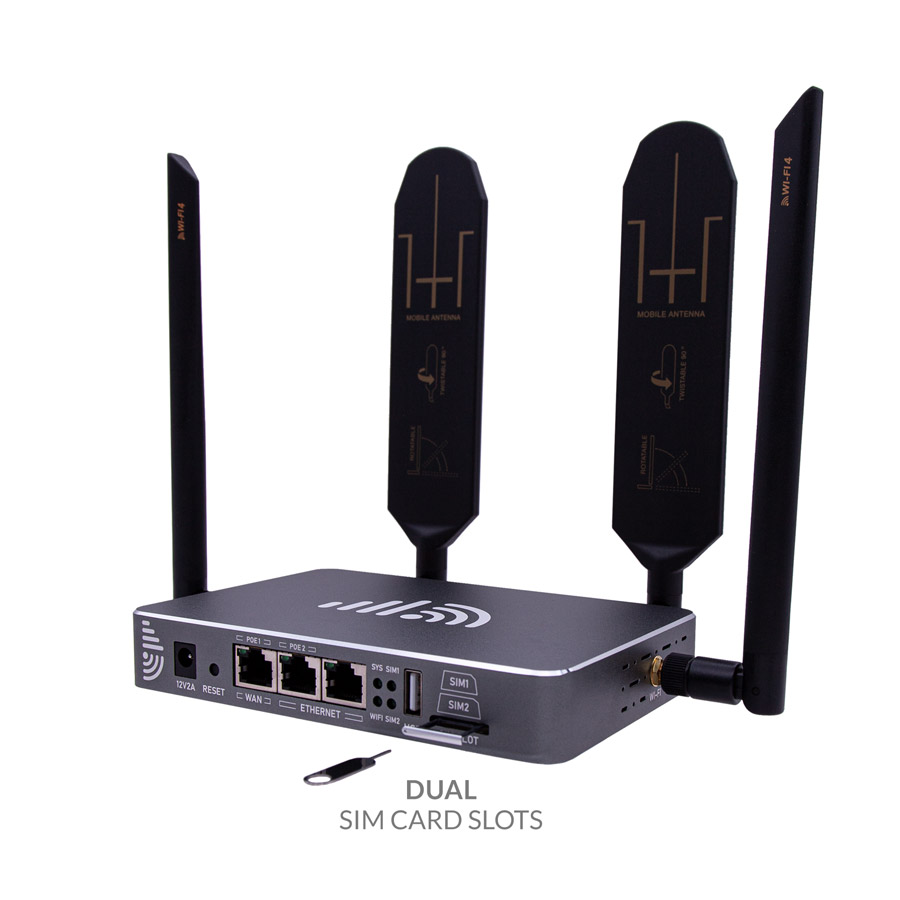

4G WiFi Cellular Router with SIM Card Modem and Dual SIM Slots
CAT4 Modem for North American Cellular Networks -Canada
Cellular Modem 3G 4G
Category 4 LTE Modem with Dual SIM Slots
Unlocked for North American 3G 4G Networks
Industrial M2M Modem – Max Speed 150 Mbps
High-gain Antenna
Radio-frequency optimized high-gain MIMO antenna. SMA connectors for external antennas.
LTE WiFi LAN
LTE WiFi Router with two LAN Ethernet ports
1-watt Long-range 2.4 GHz WiFi coverage
Flex Power DC PoE
Rugged Industrial Router -40°C ~ +80°C
Flexible 9~48 Volt DC & PoE Power Source
Industrial 6KV 1.5KV Lighting Protection
Cellular SIM router access North American 3G WCDMA and 4G LTE networks run by USA Canada carriers. It provides LTE internet on WiFi hotspot and LAN Ethernet ports. No phone line required.

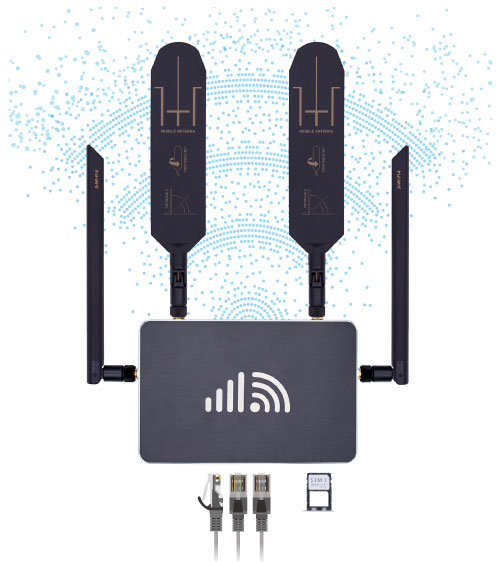

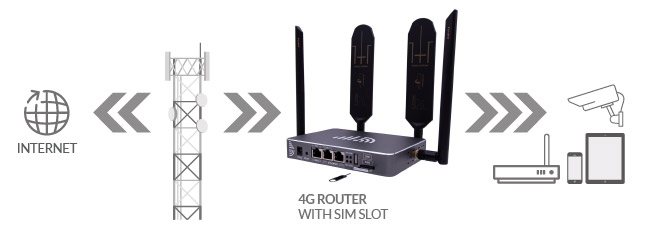

How Does 4G Cellular Router Work?
Built-in LTE modem and SIM card slots, the cellular router works standalone to access widely deployed 3G 4G networks.
After inserting a workable unlocked SIM card, it connects to 3G/4G networks and provides cellular internet with a max 150 Mbps download speed.
It provides cellular internet connectivity to wireless devices like phones, tablets, and home appliances linked to its WiFi hotspot. It also provides wired internet for computers, switches, and other indoor routers on the two LAN ports.

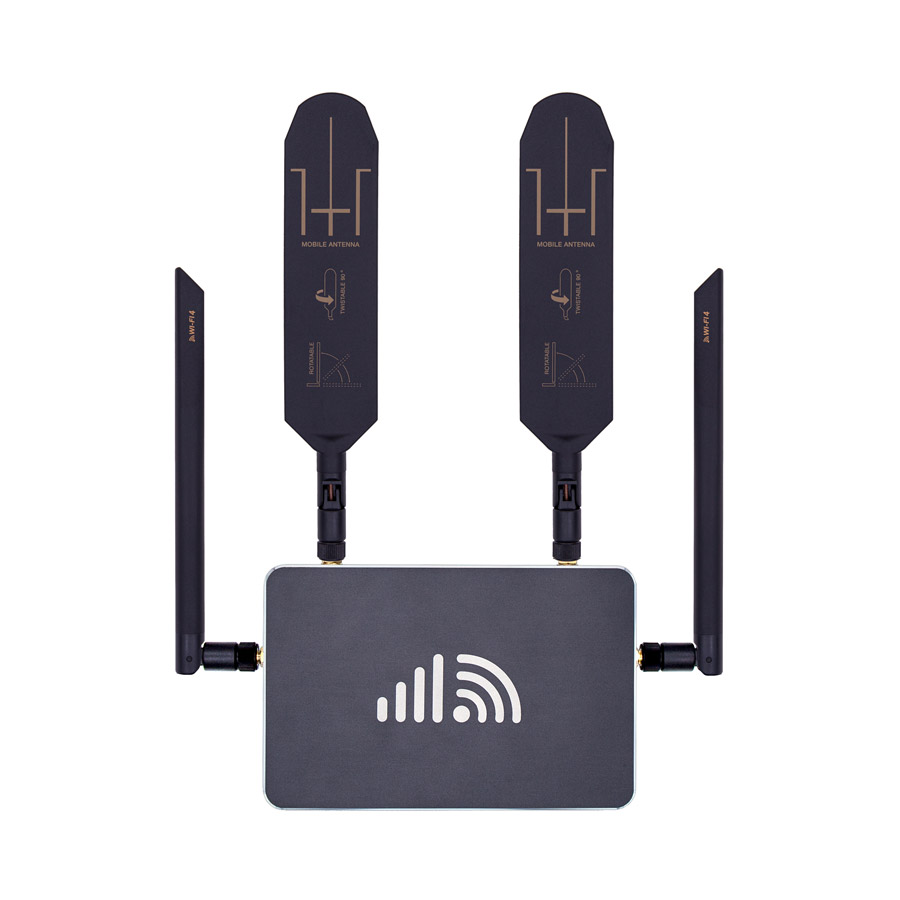

High-gain MIMO Antennas

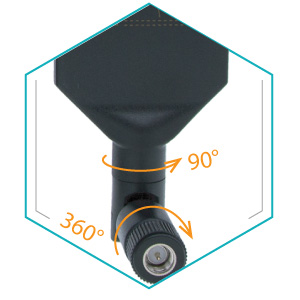

Pairs of 4G WiFi antennas in RF optimized array. High gain and low VSWR. 4G paddle antennas allow us to aim for the best signal source.
Dedicated 4G WiFi Firmware
Integrated LTE modem drivers, protocols, and watchdog to provide reliable mobile internet and open-source customizability.

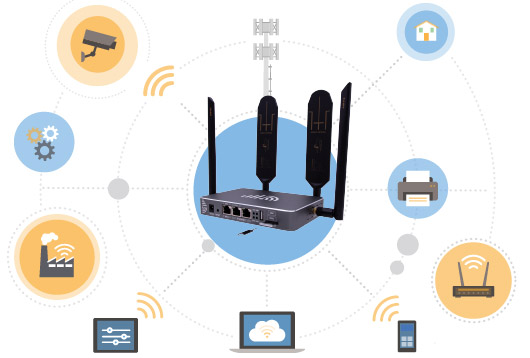

Homes Offices
4G cellular internet on SIM card
WiFi hotspots and LAN ports
Industry Sites
300M WiFi and 100M LAN
Ideal for IoT, cameras, machines, etc
Boats Motohomes
Flexible DC/PoE power sources
Wide range 9~48VDC input
Business Shops
Isolated Guest WiFi hotspot
QoS smart traffic control

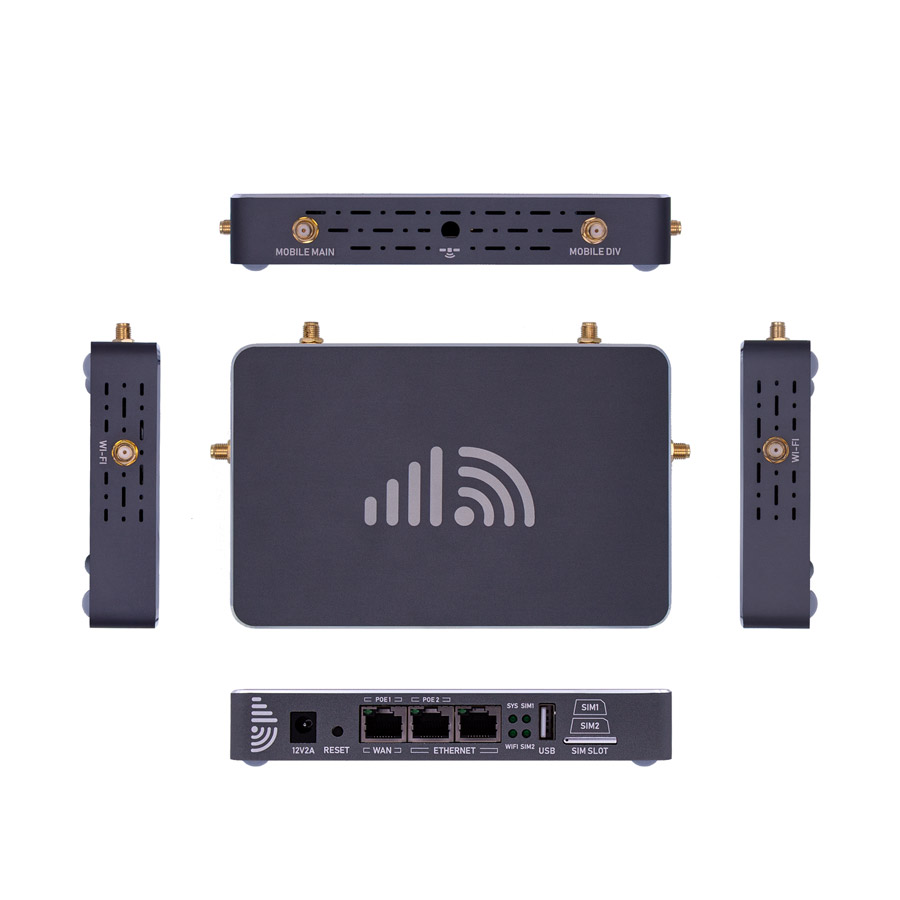

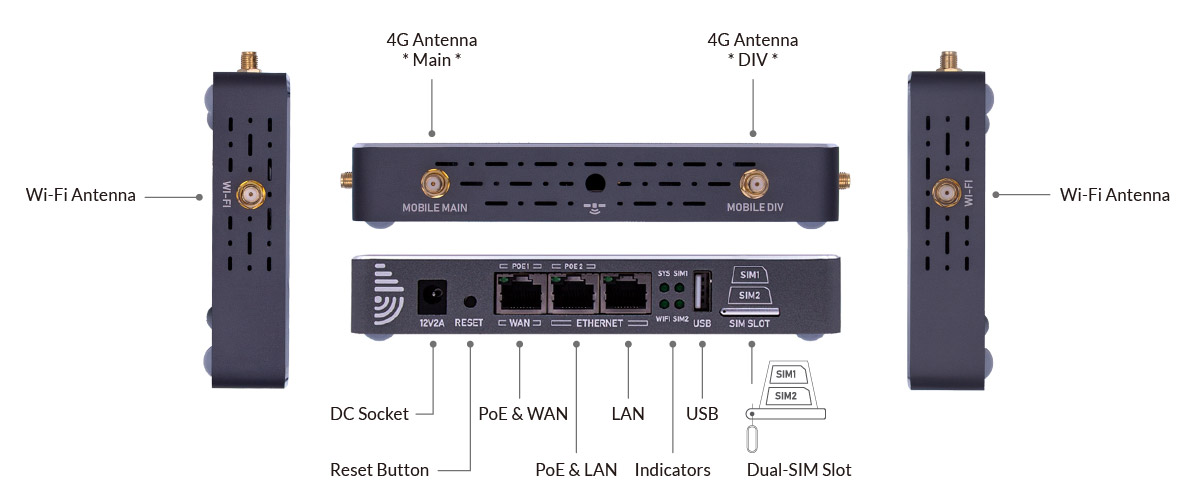

Cellular 4G Router Hardware Overview
Engineered for demanding industrial environments and applications. Hardened components are rated for extreme temperatures, shocks, and vibration.
Modular hardware design allows seamless integration into your environment, such as upgrading external antennas and swapping DC & PoE power sources.

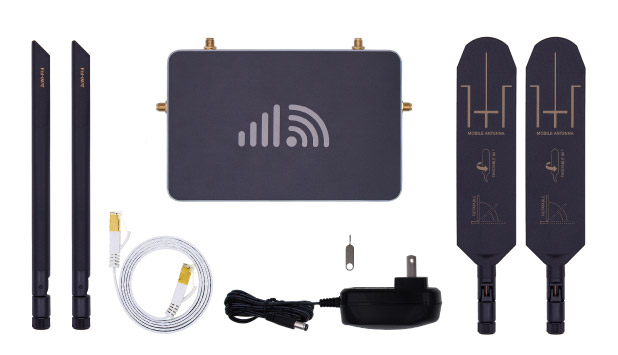

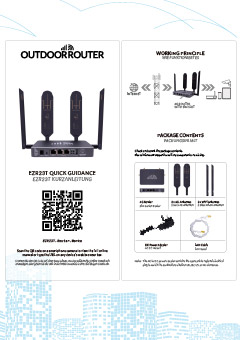

Package Contents - What Will You Get
Package Contents
1 x 4G Router CAT4 Modem
2 x 4G paddle antenna
2 x WiFi whip antenna
1 x 1-meter LAN cable
1 x AC-DC Power adapter
Note: Exclude PoE Injector
Be the first to review “Canada 4G Router CAT4 Dual SIM Modem LTE WiFi”
You must be logged in to post a review.

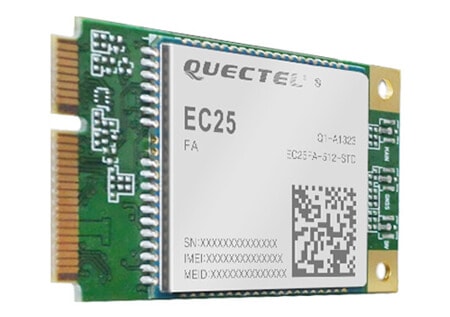

Cat4 Canadian Cellular LTE Modem
| LTE Category: | CAT.4 (3GPP E-UTRA Release 10) |
| 4G FDD Bands: | B2/B4/B5/B12/B13/ B14/B66/B71 Download max 150Mbps / Upload max 50Mbps |
| 3G Bands: | B2/B4/B5 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity (Except LTE B2) |
| Temperature: | Working: -40°C ~ +80°C |
| Working Area: | North America |
| Certification: | GCF / FCC / IC / PTCRB AT&T / Verizon /T-Mobile / Telus /Bell |
* Make sure your SIM card is unlocked and activated! *
Support cellular networks in North America, including Canada, USA, Mexico, and most of the Latin American countries.
EZEN3X-V3 - Motherboard
| CPU: | Qualcomm Atheros QC9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8 mm) |
| WAN/LAN port: | 10/100 Mbps |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80 °C Storage: -50 to +90 °C |
| Humidity: | 10% ~ 95% RH |
| Measurement: | Router 171x113x25 mm |
| Package: | 300x197x60 mm |
Wi-Fi Hotspot
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412 ~ 2484 MHz |
| Channel: | 1 ~ 13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
4G & WiFi Antennas
| 2 x 4G LTE antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~5dBi / V.S.W.R.: ≤ 3.0 Size: 209 x 42 mm / Material: ABS |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 1.92 Size: Ø13 x 201 mm / Material: TPEE |
| Connector: | SMA Male (Not RP) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
| Temperature: | Working: -0° to 50° Celsius |
Power Supply Options
| DC Socket: | Accepts a wide range of 9~48V DC power input AC/DC power adapter included, as below |
| PoE WAN & PoE LAN Ports: |
48~52V PoE from 802.3af/at compliant power sources PoE injector is not included |
DC Power Adapter
| Input: | AC 110 ~ 240 Volt 50/60 Hz |
| Output: | DC 12 Volt 2.0 Amps |
| Measurement: | 75.7 x 47.2 x 31.3 mm / 140 gram |
| AC Plug: | EU/GB/US/AU Standard AC plugs Ship depends on the destination |
| DC Jack: | Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Length 1200mm |
| Protection: | Short circuit, overload, and over-voltage |

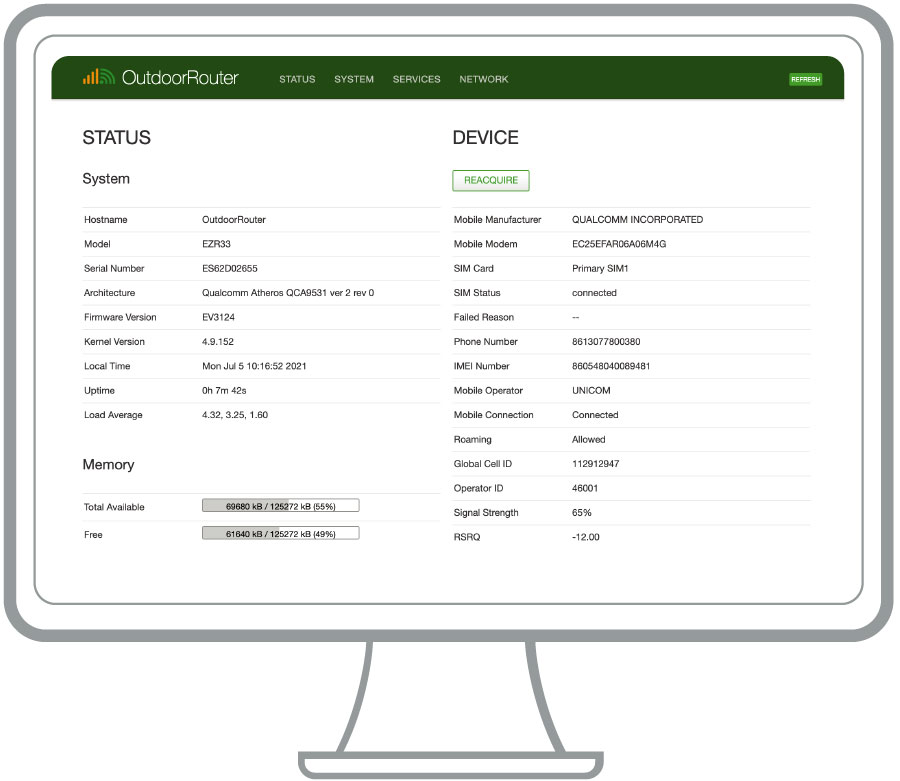

4G Router Firmware Features
A brief overview of the features and functions in the 4G router firmware, based on the version EV3143.
| Mobile Protocol: | Mobile Data, QMI, and PPP |
| Command Sets: | MMCLI, QMI, and AT commands |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Network lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| SIM Switching: | Primary SIM1 by default Choose SIM card or set to auto switch SIM cards |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| LAN/WAN Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and Multi-WAN load balancing |
| Firewall: | New port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, Nslookup |
| VPN Tunnel: | OpenVPN client and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
