The package includes the contents below, a 15-day money-back warranty, and a 1-year quality guarantee.
You will also receive our zealous customer services and technical support!
NEW
5G
5G
Canada 5G SIM Router Mobile Modem LTE CAT19
C$583
The future-proof 5G SIM card router has a cellular 5G-NR modem and SIM card slot to provide flexible broadband 5G internet for homes, offices, IoT, and businesses with higher bandwidth, faster speeds, and lower latency. The global spectrum 5G cellular modem supports Canada 5G NA/NSA networks with CAT19 LTE fallback.
- X62 5G-NR cellular modem with SIM card slot – Max 3.4Gbps.
- 4G-LTE failover on CAT19. Built-in load balancing and Multi-WAN.
- Standalone 5G cellular WiFi router and optimized antenna array.

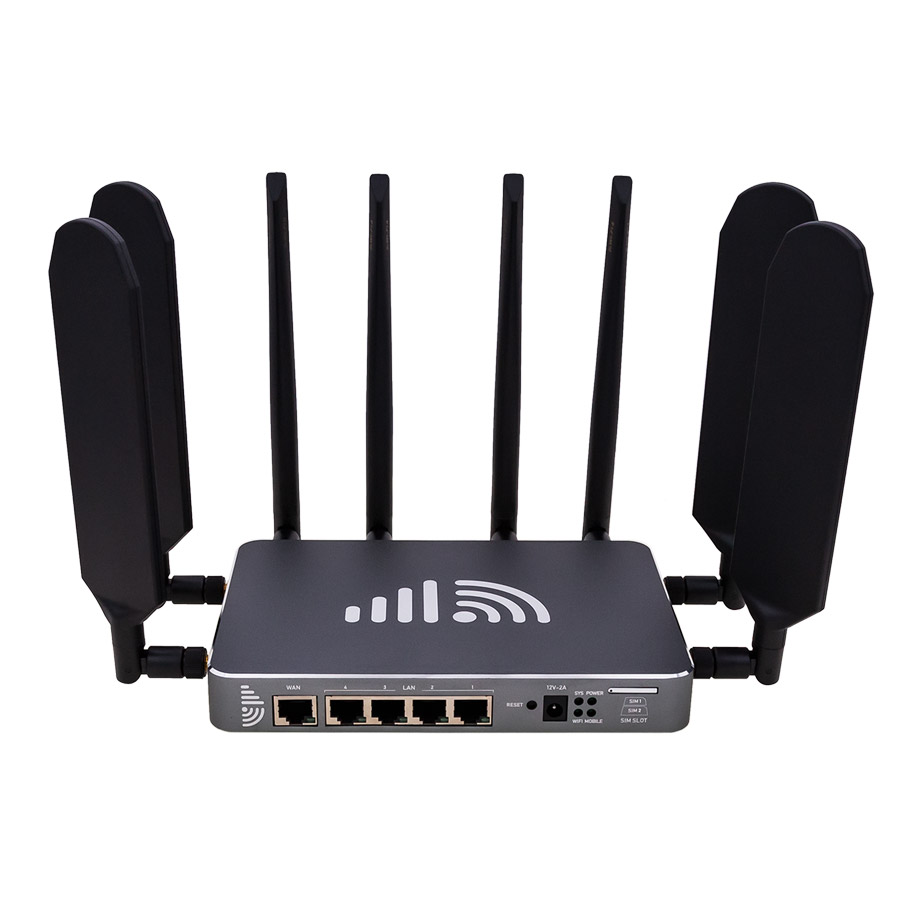

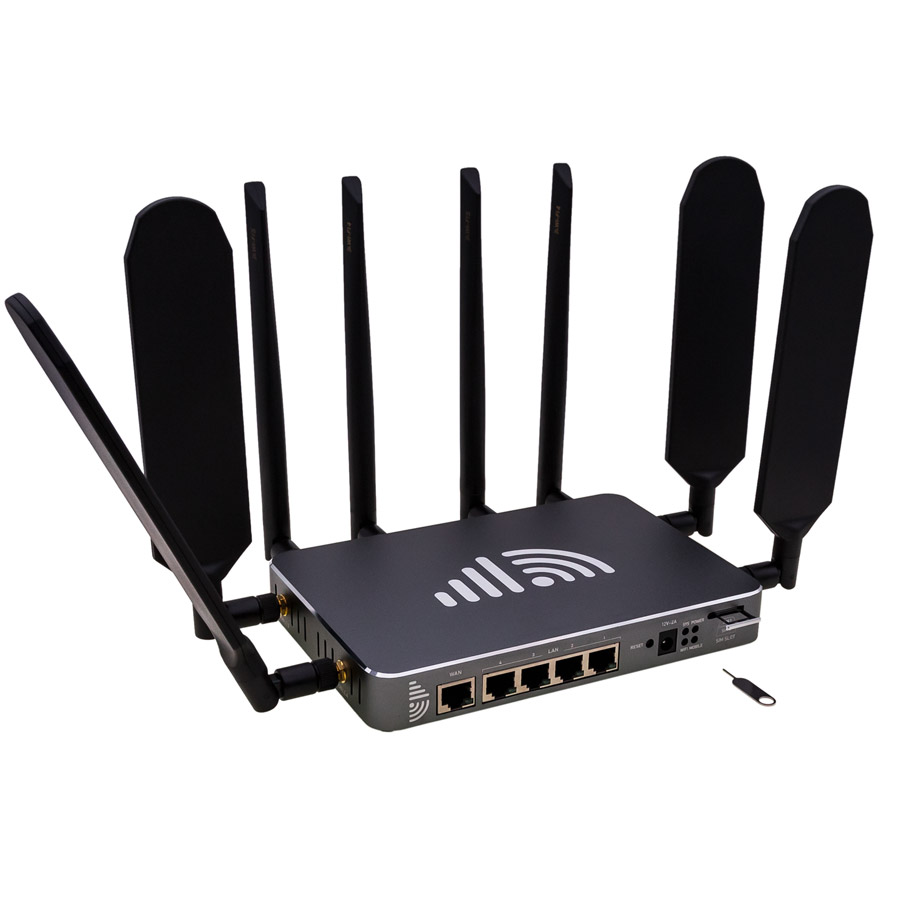

Cellular 5G Router with SIM Card Slot
Cellular 5G SIM router home internet gateway with WiFi and Ethernet.
Insert a 5G SIM card to access the fast-speed 5G cellular network for home appliances and business equipment.
5G Cellular Modem
4×4 MIMO – Max 3.4Gbps download speed
Support global 5G-NR and LTE mobile spectrum
3GPP Release 16 NSA/SA operation, Sub-6 GHz
Industrial-grade Router
Robust cellular internet solution for home, office, IoT, and business. Support external antennas.
Dual-band WiFi Hotspots
Powerful WiFi hotspots on 2.4GHz & 5.8GHz
WiFi RF Booster – Coverage 50~100 yards
Gigabit Ethernet Ports
Fast speed 4x LAN Ethernet and 1x WAN ports
Serve massive up to 120 concurrent users
Multi-WAN on Mobile, WAN, and WiFi Relay
5G Cellular SIM Modem X62
The future-proof 5G router has an advanced X62 cellular 5G modem with a Nano SIM card slot. The optimal 4×4 MIMO antenna array brings you the best signals.
It’s featured by global 4G-LTE and 5G-NR mobile spectrum and supports Canadian carriers and international roaming. Connect to Sub-6 5G-NR NA & NSA cellular networks with automatic LTE fallback.
Optimal WiFi 5G Antenna Array
High-gain WiFi and 5G antennas are in the optimized MIMO array. Twist the 5G paddle antennas to adjust directions. SMA connectors support external antennas.
Powerful Cellular Router Firmware
It is powered by specialized cellular WiFi router firmware with 5G modem drivers, cellular protocols, VPN tunnels, and powerful tools. The dedicated supervisory watchdog program keeps the cellular connection active.
Safe & open-sourced firmware – With bootloader and full authority.
Contact us for the online demo.
At Home & Office
5G LTE internet max 3.4Gbps
Multi-WAN and load balancing
For Live Video Streaming
Max 900Mbps upload speed for online learning and video chat
For Camera & CCTV
Long-range WiFi coverage
1Gbps LAN & 1200Mbps WiFi
On Boat & Caravan
Global roaming 5G LTE internet
Works on 12V DC power
Industrial Applications
M2M optimized internet gateway
Open-source firmware
Shop / Hotel / Restaurant
Serve 120 users at the same time
Guest WiFi & QoS traffic control

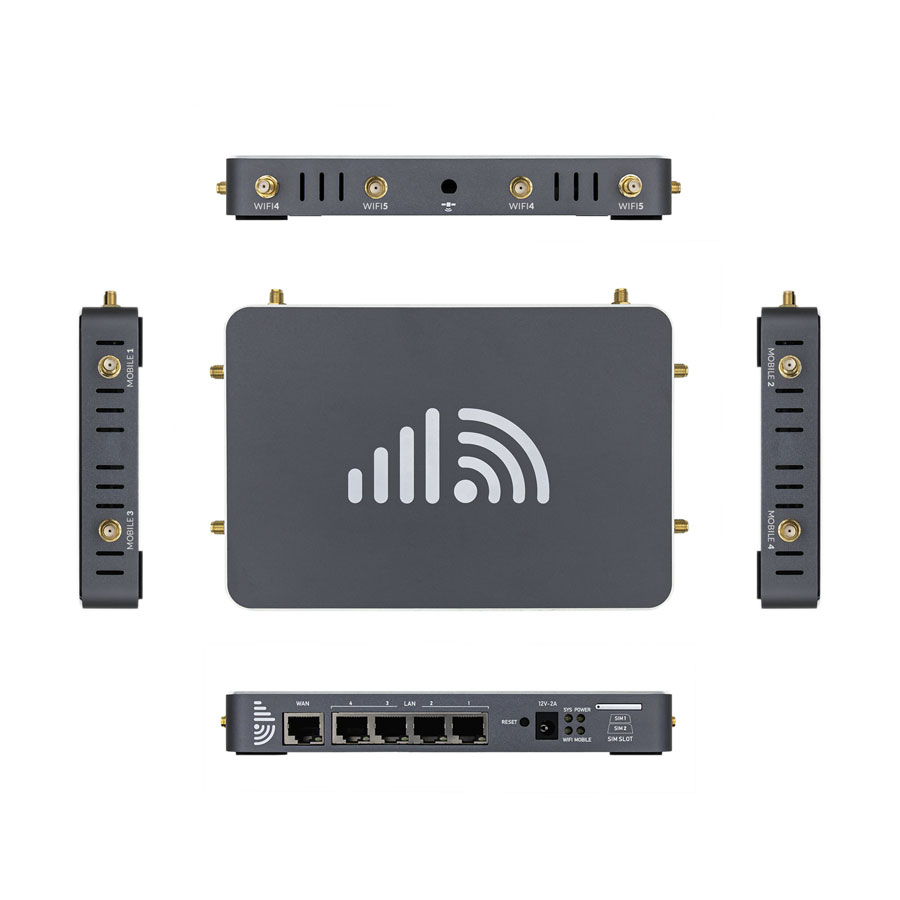

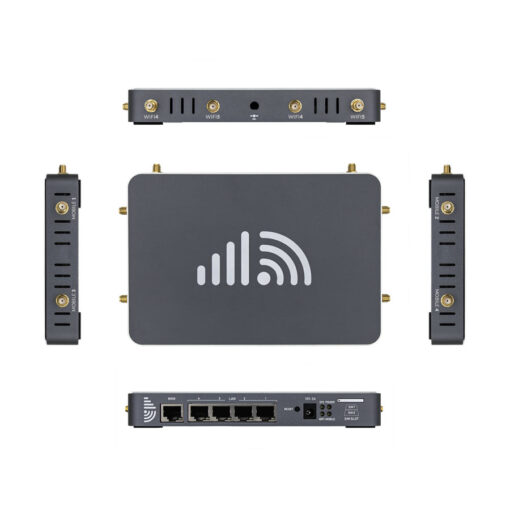

5G Router Hardware Overview
Robust cellular modem router is designed for rugged environments and industrial applications.
The modular hardware design allows easily upgrading antennas and even cellular modules.
Package Contents - What You Will Get
Packing List
1 x 5G cellular modem router
4 x 5G paddle antenna
4 x WiFi whip antenna
1 x 1-meter LAN cable
1 x Power adapter – US plug
Be the first to review “Canada 5G SIM Router Mobile Modem LTE CAT19”
You must be logged in to post a review.
5G NR Cellular Modem
for North-American 3G/4G/5G Networks
The basic 5G cellular modem supports major 5G NA NSA networks in the USA and Canada. It also supports global roaming - except for PRC.
5G-NR Cellular Modem
| Specification | 5G NR | 4G LTE |
| Category: |
3GPP Release 15 |
Download CAT16 Upload CAT18 |
| Bands: | 5G NR SA & NSA: N1 2 3 5 7 8 12 20 25 28 38 40 41 48 66 71 77 78 79 |
FDD Bands: B1 2 3 4 5 7 8 12 13 14 17 18 19 20 25 26 28 29 30 32 66 71 TDD Bands: B35 38 39 40 41 42 43 48 |
| MIMO: | Download 4xMIMO N1 2 3 7 25 38 40 41 48 66 77 78 79 Upload 2x MIMO on N41 |
Download 4xMIMO B1 2 3 4 7 25 30 32 34 38 39 40 41 42 43 48 66 |
| Download Speed: | 5G NSA: 2.5Gbps 5G SA: 2.1Gbps |
1.0Gbps |
| Upload Speed: | 5G NSA: 450Mbps 5G SA: 650Mbps |
200Mbps |
| 3G WCDMA: | Band 1 2 3 4 5 6 8 19 DL42Mbps UL5.76M |
|
| Temperature: | Working: -30°C ~ +70°C | |
| Modem Cert.: | GCF CE PTCRB FCC RCM |
Motherboard Top Down View
EZEN4X3 Version 1.2
EZEN4X3 - Router Motherboard
| CPU Chipset: | MTK7621 MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 (Active) and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -20 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x WAN & 4xLAN / 8x Antenna sockets Nano-SIM card slot / 1x Reset button |
Wi-Fi Hotspots
| Frequency: | 2.4GHz: 2412~2472 MHz |
| Wi-Fi Channel: | 1~13 |
| Speed Rate: | 300Mbps |
| Output Power: | 27dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R Wave 2.0 MU-MIMO |
| Mesh Wi-Fi: | EasyMesh standard |
RF Antennas
| 4 x 5G Antenna: | 700~960 / 1710~2170 / 2300~2700 / 3400~4900 MHz -1~3±1dBi Gain / ≤ 3.5 V.S.W.R. Size: Width 42mm Length 179~209mm Material: ABS |
| 4 x Wi-Fi Antenna: | 2x 2.4GHz Wi-Fi Antenna: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 1.92 2x 5.8GHz Wi-Fi Antenna: 5150～5850MHz Size: Ø13 x 201 mm / Material: TPEE |
| Connector: | SMA Male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
DC Power Adapter
| Input: |
AC 100~240Volt 50/60Hz 0.5Amps |
| Output: | DC 12Volt 2.0Amps |
| Measurement: | 75.7*47.2*31.3mm / 140g Depending on the AC plug |
| AC Plug: | EU/GB/US/AU standard available Ship depends on the destination |
| DC Jack: | Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Length 1200mm |
| Protection: | Short circuit, overload, and over-voltage |
| Certification: | CE / UL / FCC / DOE / ERP / GS / BS / SAA |
SIM Router Firmware
| Router Firmware: | OpenEzen Series - EV40xx |
| Log in: | IP address: 192.168.20.1 Password: root |
| Built-in Protocols: | Mobile: Mobile-Data (QMI) and PPP WAN: PPPoE / DHCP / Static LAN: Static with DHCP server (IPv4 & IPv6) |
| VPN Tunnel: | PPTP, L2TP, IPSec, OpenVPN, and WireGuard |
| Cloud Management: | Traversal Cloud and Ezen-Cloud (Optional) |
| Security: | Anti DDoS, SPI firewall, IP/Mac/Domain Filter, IP & Mac bind |
| Port Forward: | Virtual server, port triggering, UPnP, DMZ |
| Computer: | Windows / Mac / Linux / etc |
| Bootloader: | uBoot (192.168.1.1) |
Contact Us
Please feel free to contact us if you need any further information about the product.
