Outdoor Cellular Router Dual SIM Two WiFi
Powered by a new M.2 CAT6 LTE-Advanced cellular modem with dual SIM card slots.
Outdoor cellular internet gateway with external antennas and IP67 waterproof protection.
-7%
Canada Outdoor Cellular LTE SIM Modem Router
Original price was: C$534.C$498Current price is: C$498.
The waterproof outdoor cellular router connects to global 3G and 4G network bands. It’s designed to deploy broadband rural internet through WiFi hotspots and wired Ethernet. It works standalone by integrating a global roaming LTE-Advanced modem, dual SIM card slots, and MIMO external antennas.
- Reliable broadband rural internet for remote areas and outdoor events
- Global CAT6 LTE+ modem supports 3G 4G bands and major Canadian providers
- Standalone LTE SIM WiFi router – Long-range outside WiFi coverage
- All-weather operation router with surge and IP67 waterproof protection

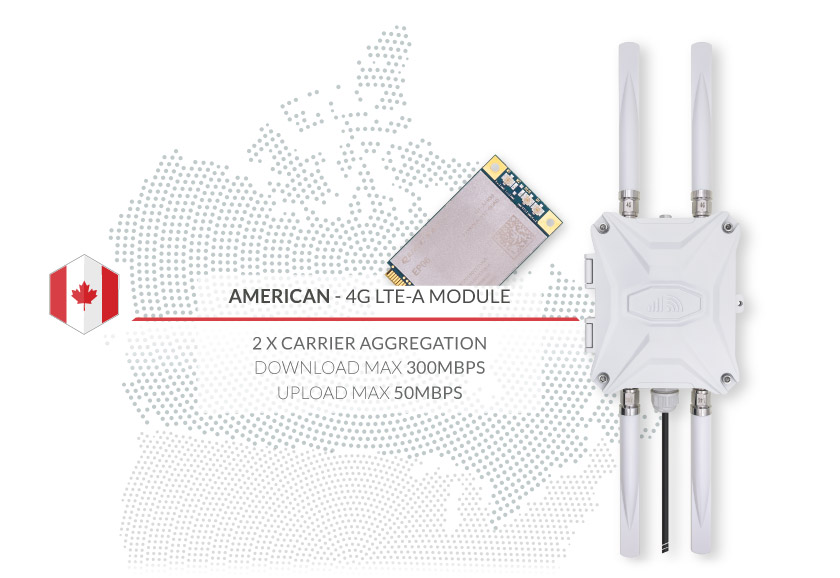

CAT6 Cellular SIM Modem
LTE-Advanced Modem with Dual SIM Slots
Broadband LTE WiFi Router – Max 300Mbps
Unlocked – Supports Global 3G/4G Bands
Outdoor 4G WiFi Router
External MIMO Antennas Improve 4G Signals
150-300 yds Outdoor WiFi – Dual Hotspots
Avoid Structural Barriers and RF Interferences
IP67 Industrial Waterproof
Rugged Router Waterproof with Surge Protection
All-Weather Reliable 4G WiFi Internet Gateway
Flexible Power PoE and DC
52V PoE Injector with 1Gbps Ethernet Port
DC Accepts A Wide 9~52VDC Input Range
LTE WiFi Router for Harsh Outdoor Environments
Rugged outdoor 4G LTE router integrates robust industrial-grade protection for all-weather operation. It delivers 4G LTE internet to demanding applications facing rain, snow, heat waves, or thunderstorms. It’s your reliable outdoor LTE WiFi internet gateway for smart cities, transportation, remote areas, and construction sites.
Rural Remote Areas
External antennas receive stronger outdoor signals. Fast broadband internet – Get rid of landlines.
Outdoor Events
Set up temporary internet over mobile networks for RVs, boats, campsites, and outdoor events.
Harsh Deployments
Deploy reliable LTE WiFi Internet for shops, machines, IoT fields, and industrial applications.

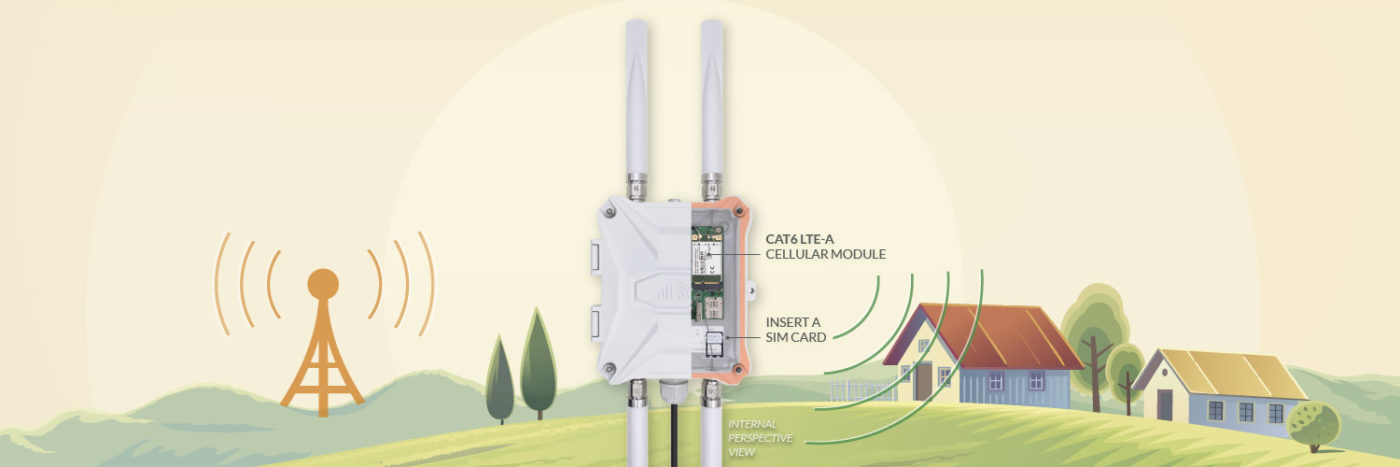

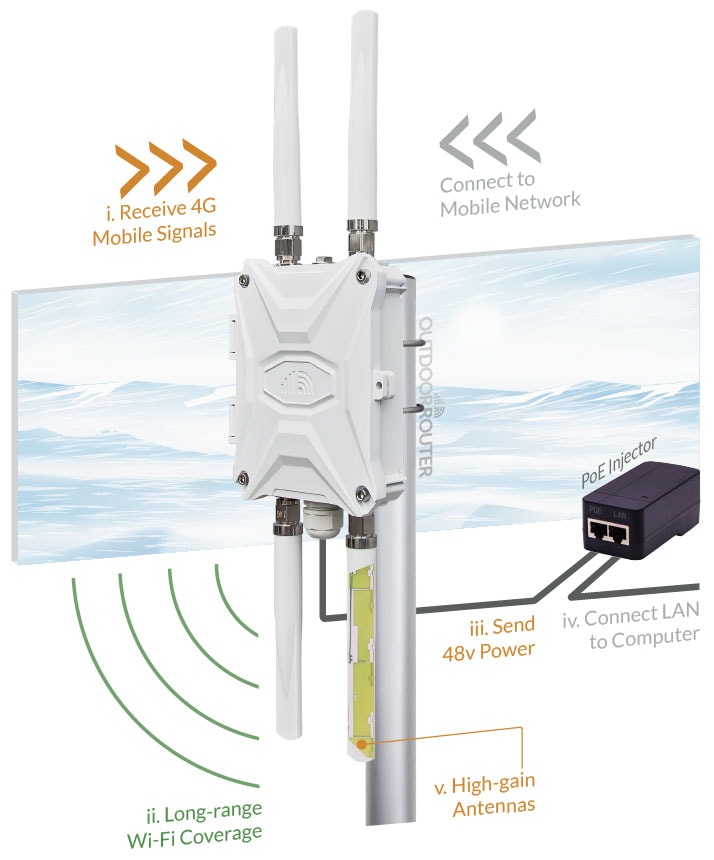

How Does Outdoor Cellular Router Work?
After inserting a SIM card, the outdoor router connects to the 3G/4G mobile networks with a maximum 300Mbps download speed. Then, it provides mobile internet to wireless devices like phones, tablets, and smart appliances linked to its WiFi hotspot. It also provides internet on wired connections such as computers, switches, or indoor routers connected to the PoE injector.
The CAT6 LTE modem supports carrier aggregation by combining multiple LTE bands and increasing the data rate and mobile internet speed.
The 4G LTE outdoor router works standalone with Mobile internet, input WAN, and WiFi relay. It can also bridge 4G internet to your existing network.
Rural Internet on 4G SIM Modem
The outdoor router uses external antennas to bypass structural barriers and picks distant outside signals at maximum strength. Carrier aggregation on CAT6 modem bonds multiple LTE bands, unlocking fast rural LTE internet. It brings low-latency broadband internet with impressive coverage for homes and offices to enterprises.
Rugged Router Withstands Extreme Weather
Robust hardware all-weather operation – Reliable LTE internet in challenging conditions.
- IP67 Waterproof Enclosure – Made of anti-corrosion aluminum with outdoor coating, keeping internal electronics protected and preventing water and dust ingress.
- Across Extreme Temperature -40°C to +80°C. External fins for effective heat dissipation.
- Equipped Lighting Protection of (industrial-grade) common 6KV and differential 1.5KV.
Flexible powering options ensure seamless integration into diverse environments and power infrastructures.
52V PoE Injector
Complies with 802.3af & at standard Power over Ethernet (PoE), which transmits DC power and data over Ethernet cable, it can be powered directly from included PoE injectors or external PoE switches up to 50 meters. For longer cable runs, multiple PoE extenders can be utilized.
Alternative DC Power
DC power socket accepts 9~52V voltage to work with AC-DC adapters and 12V battery sources. It accommodates reliable powering through local AC outlets, vehicles, solar power systems, and more.

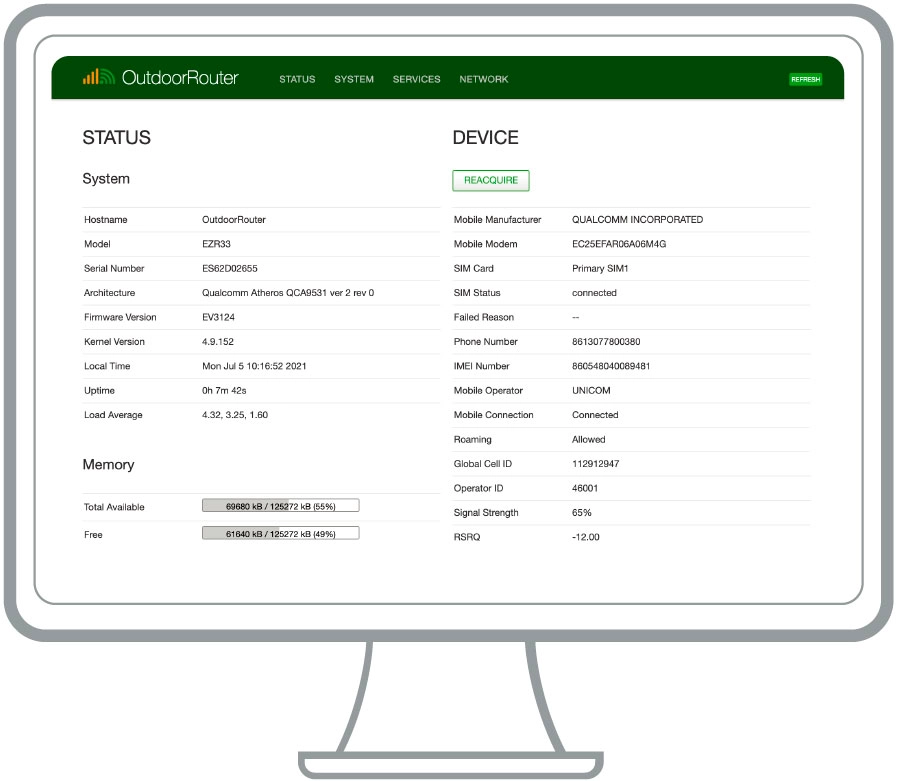

Robust Cellular Router Firmware
Optimized firmware system delivers reliable mobile internet connection and seamless plug-and-play experience. Contact us to customize firmware and meet specific needs. An online demo is available upon request.
Integrated 4G modem drivers and advanced mobile protocols.
Supports dual SIM cards, band lock, and 4G IP passthrough.
Exclusive mobile watchdog automatically tracks and keeps mobile internet alive. Free Traversal Cloud for remote access.
Supports WiFi relay, guest WiFi, WiFi schedule, custom firewall, multiple-WAN, and OpenVPN IPSec WireGuard VPN tunnels.

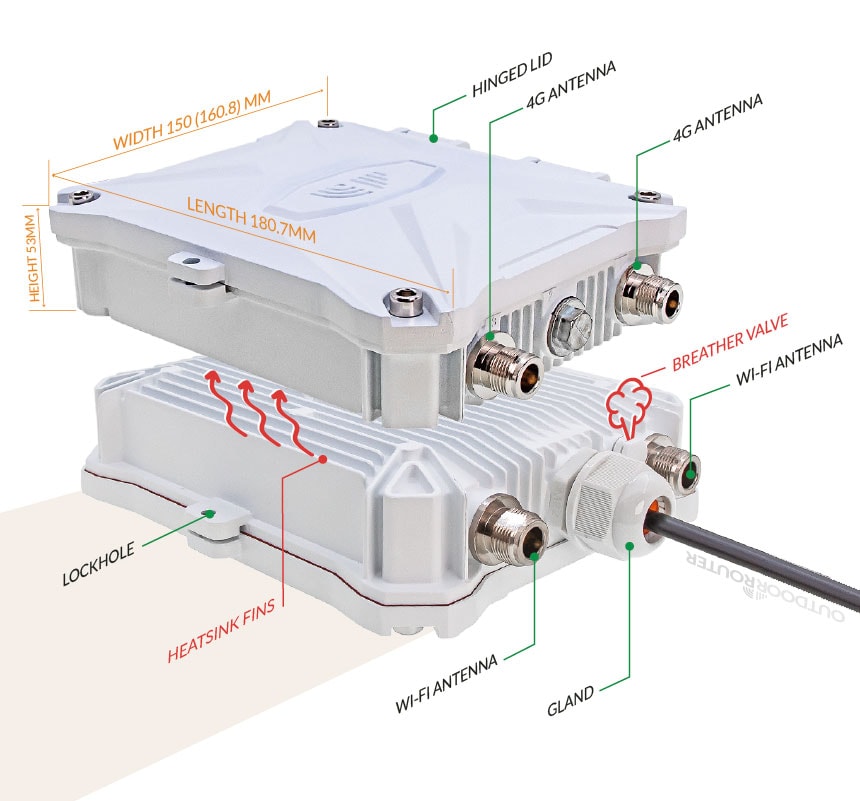

Hardware Overview on Outdoor Cellular Router
Integrates durable construction with modular flexibility to bring robust wired and wireless connections for stable operation under extreme conditions. The modular architecture allows flexible installations and easy external antenna upgrades across various use cases.
Shipment Package & Services
We aim to deliver robust hardware and provide an exceptional customer experience before and after purchase.
All hardware enjoys a 15-day money-back guarantee, and you can evaluate performance risk-free. It is backed by a one-year quality warranty covering defects. You can access our dedicated customer support team for the product’s life. Our experts can assist with setup, configuration, troubleshooting, or integration.

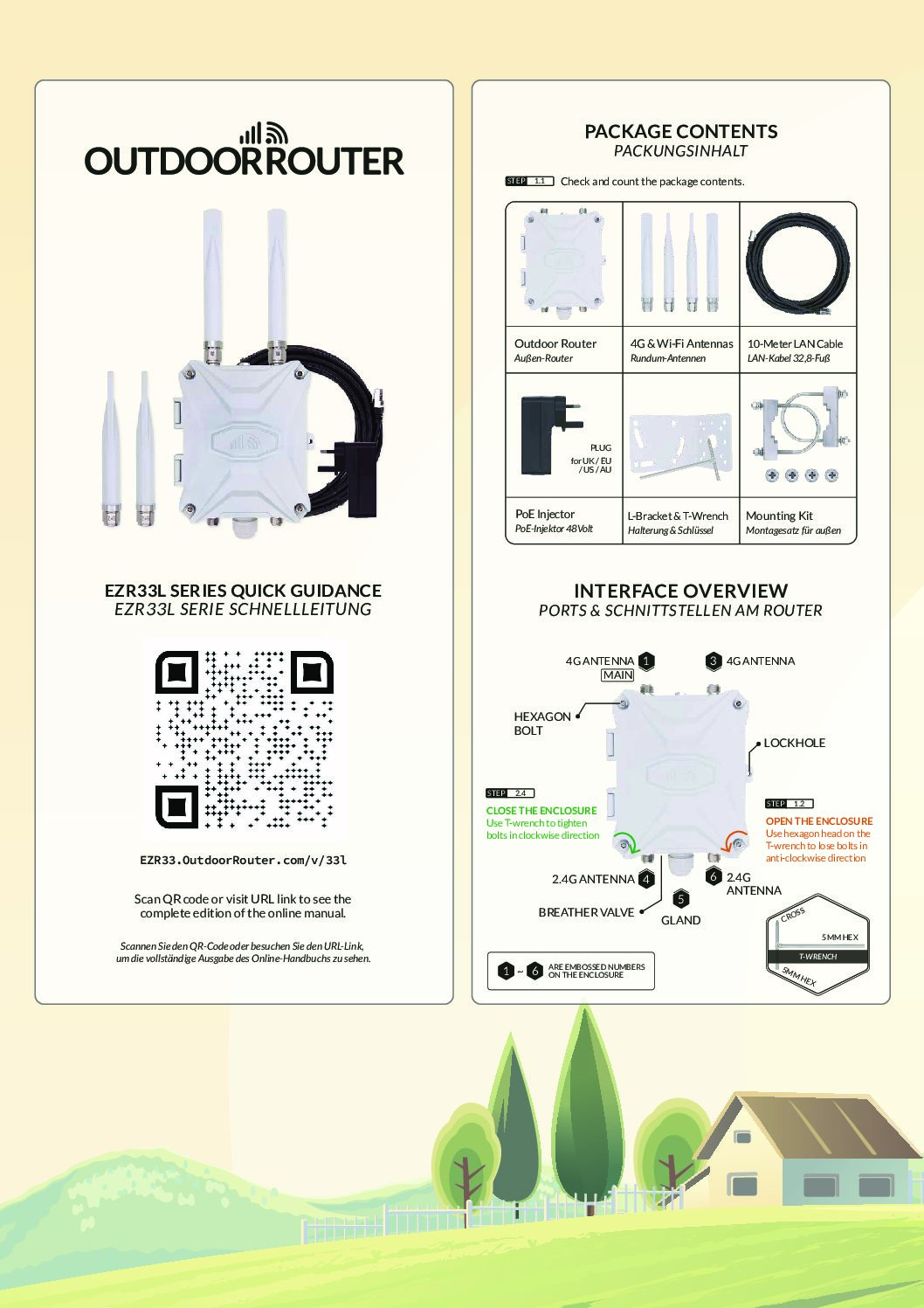

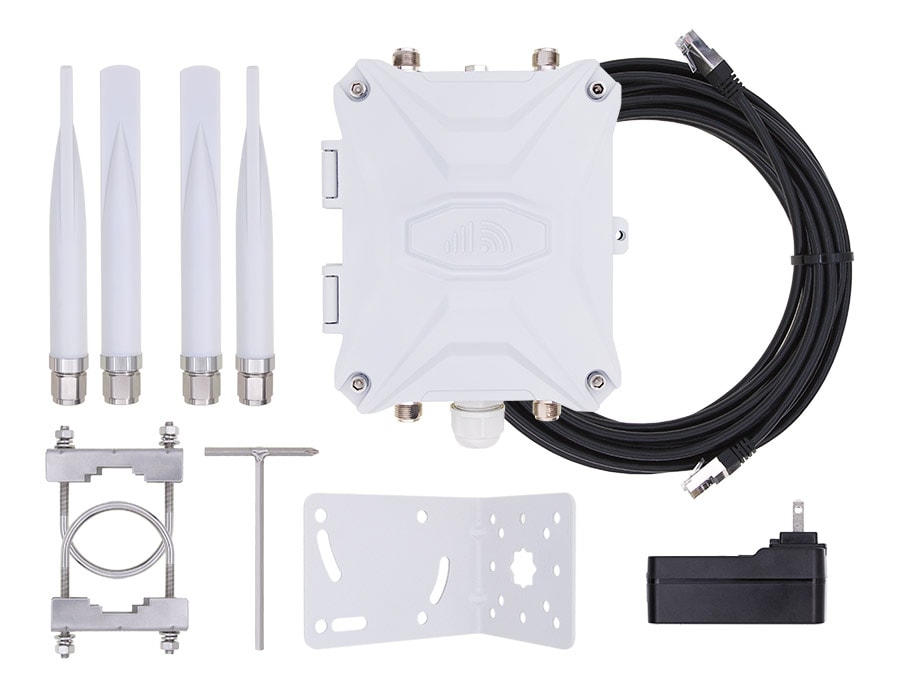

Package Contents
1 x 4G Outdoor Router CAT6
2 x Omni 4G Antenna
2 x Omni WiFi Antenna
1 x 10-meter LAN Cable
1 x 52V PoE Injector

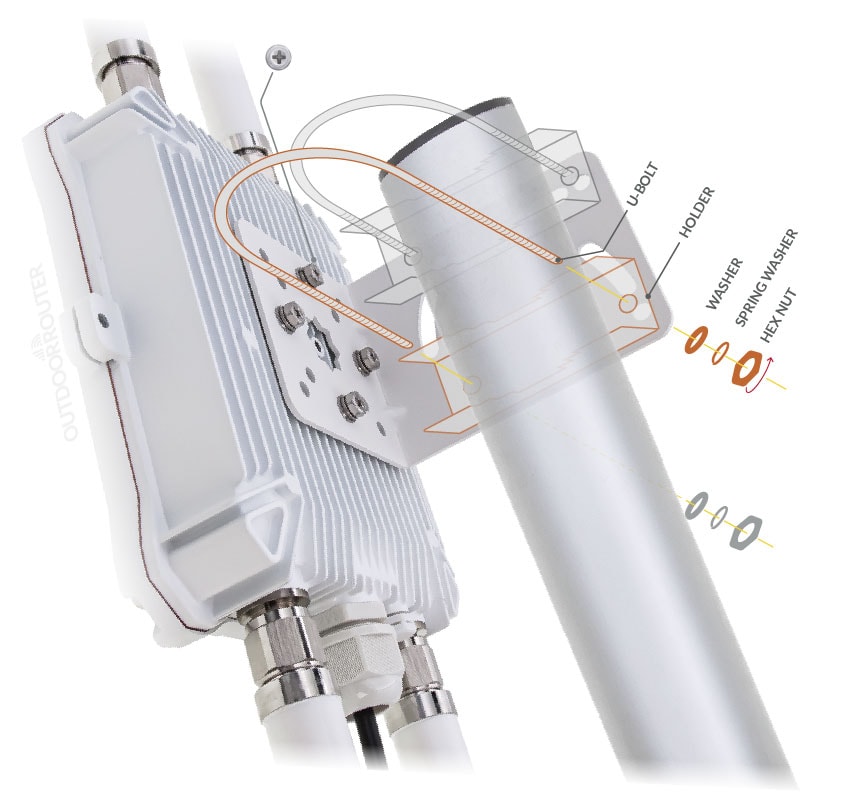

1 x Mounting Set & Tool
Be the first to review “Canada Outdoor Cellular LTE SIM Modem Router”
You must be logged in to post a review.
[
CAT6 Cellular Modem M.2 Key-B
| LTE Category: | Category 6 (3GPP E-UTRA Release 12) |
| 4G FDD Bands: | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 |
| 4G TDD Bands: | B34/38/39/40/41/42/43/46(LAA)/48(CBRS) |
| 3G Bands: | B1/2/3/4/5/6/8/19 |
| Carrier Aggregation | 2x CA - Intra-band and Inter-band |
| Data Rate (Max): | 4G LTE: DL 300 / UL 50 Mbps 3G UMTS: DL 42 / UL 5.76 Mbps |
| Support Antenna: | 2xMIMO (Main and Rx-diversity with GNSS) |
| Temperature: | Working: -25°C ~ +75°C |
| Working Area: | Global - EMEA, North America, etc |
| Certification: | GCF / CE / PTCRB / FCC / IC / NCC / JATE / TELEC / RCM / WHQL Europe: Vodafone / Deutsche Telekom / Swisscom / Telefonica / Orange / British Telecom | America: Vz / ATT / TMO | Australia: Telstra |
* Make sure your SIM card is unlocked and activated! *
Supports global 3G UMTS WCDMA and 4G LTE network bands.
Motherboard Top Down View
EZEN4X Version 3
EZEN4X_V3 - LTE Router Motherboard
| CPU Chipset: | MTK7621AT MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | SIM1 / SIM2 / Power / System / Wi-Fi / Mobile |
| Consumption: | ≤ 25 Watt |
| Temperature: | Working: -30 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x PoE & LAN and 1x WAN 2x Nano-SIM card slots 1x Reset button |
1200M Dual-band WiFi
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27 ± 2.0 dBm | 24 ± 2.0 dBm |
| Sensitivity: | ≤ -64 ~ -91 dBm | ≤ -55 ~ -82 dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac wave2 | |
| Modulation: | OFDM / BSDK / QPSK / DQPSK / DBPSK | |
| MIMO WiFi: | 2T2R Wave 2.0 MU-MIMO | |
Outdoor Omni Antennas
| 2 x 4G Antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi Antenna: | Frequency: 2400~2500MHz / 5150～5850MHz Gain: 4~5dBi / V.S.W.R.: ≤ 2.0 |
| Connector: | N Male |
| Measurement: | Ø 22 mm / Length 180 mm |
| Material: | ABS and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector w/ Ethernet
| Input: |
AC 100~240Volt 50/60Hz |
| Output: | 52Volt 0.5Amps |
| LAN Cable | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~52 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. DC power supply is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48~52V 0.5A.
EV4X - 4G Router Firmware
Function chart is base on firmware Version EV4034
Read more about EV4X firmware releases & tutorial
| Mobile Protocol: | Mobile Data, QMI, and 4G-PPP |
| Command Sets: | MMCLI, QMICLI, and AT command sets |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (Cell ID, RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Mode lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| Link Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and load balancing |
| Firewall: | Open new port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, and Nslookup |
| VPN Tunnel: | OpenVPN, IPSec, and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
Contact Us
Please feel free to contact us if you need any further information about the product.
