C$569
Outdoor cellular modem CAT12 with SIM card slots provides external 4G WiFi hotspots. It’s the off-grid cellular internet gateway for rural areas.
Built-in broadband cellular modem works with the global 3G/4G spectrum, working for Canadian carriers. Dual SIM card slots and a single SIM standby. Flexible modular design in a waterproof enclosure to withstand harsh outdoor environments.
Fast-speed, Off-grid Cellular SIM Internet
Outdoor Design for Stronger 4G & WiFi Signals
Supports Canada and USA 3G 4G Carriers
CAT 12 LTE+ Modem with Two SIM Card Slots
Broadband Cellular Internet – Max 600 Mbps
Receiving Better Cellular Signals Outdoors
Outdoor WiFi Coverage and WiFi Repeater
Supports Upgrading External Antennas

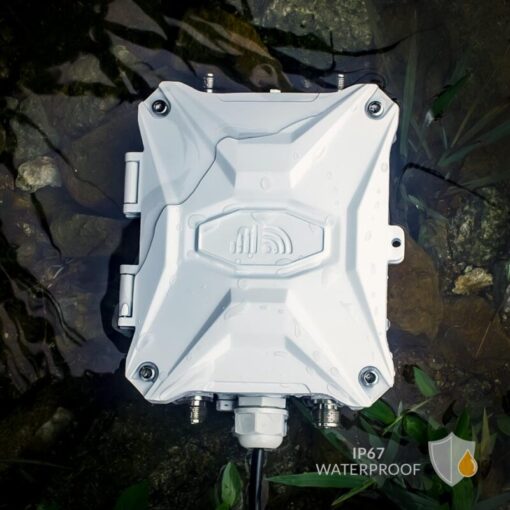

Rugged IP67 Waterproof with Surge Protection
All-Weather Reliable 4G WiFi Internet Gateway
PoE – 52V PoE Injector with 1Gbps Ethernet
DC – Accepts A Wide 9~52VDC Input Range
This industrial-strength outdoor CPE provides reliable broadband cellular internet in off-grid and challenging environments. It is a dependable 4G WiFi gateway for remote locations and outdoor installations. Designed to work in extreme weather conditions, including rain, snow, heat, and storms, it is ideal for smart city infrastructure, transportation networks, construction sites, and other rugged outdoor settings requiring robust internet connectivity.
Off-Grid Internet
Enhanced 4G signals by external antennas. Enjoy fast internet without relying on phone lines.
Outdoor WiFi Hotspot
Provides broadband cellular internet for boats, motorhomes, campsites, and outdoor events.

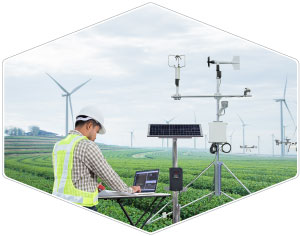

Industrial LTE Internet
Delivers LTE WiFi connections for equipment and IoT deployments in challenging environments.

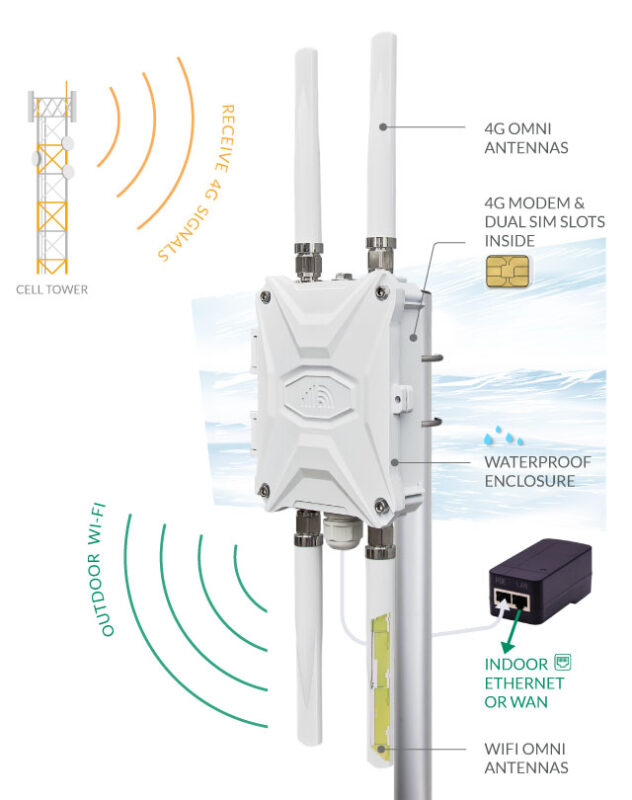

The equipped external omni antennas help the outdoor cellular modem to overcome structural obstacles and capture distant signals at optimal strength.
Since deployed outdoors, it can provide extortionary outside WiFi coverage directly from the cellular internet. Meanwhile, indoors can connect to the wired Ethernet from the PoE injector power supply.

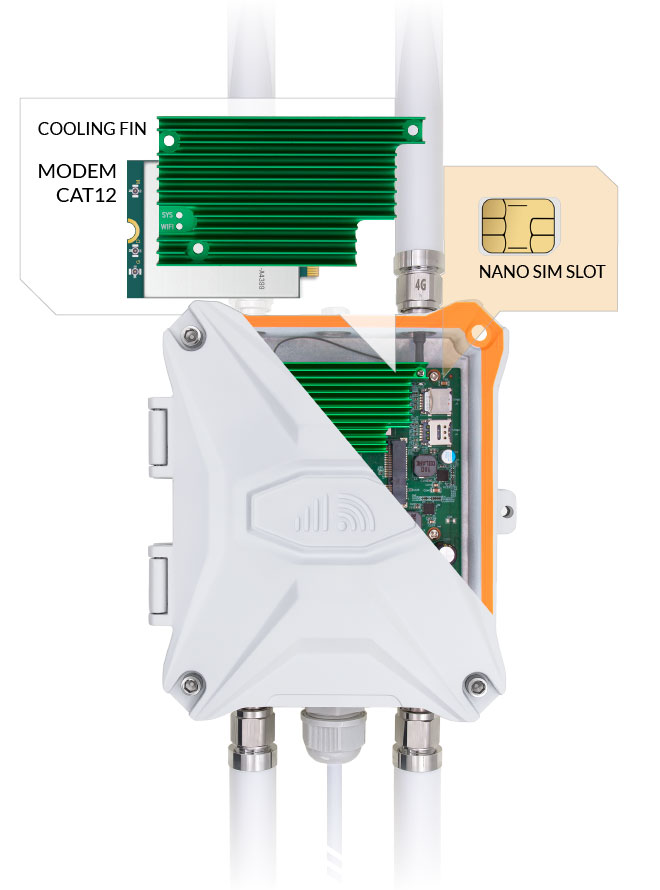

Once you insert a workable nano-size SIM card with sufficient cellular signals, the outdoor cellular modem establishes an LTE internet connection to 3G/4G networks. The CAT12 cellular modem employs carrier aggregation to combine multiple LTE bands to deliver fast-speed and low-latency internet.
The WiFi hotspot distributes cellular internet to various wireless devices, including smartphones, tablets, and smart home gadgets. It also supports WiFi relays for links to existing WiFi modems you have.
The PoE injector supplies Ethernet connectivity through wired connections, supporting devices such as computers, network switches, or indoor routers.
Flexible powering options ensure seamless integration into diverse environments and power infrastructures.
Complies with 802.3af & at standard Power over Ethernet (PoE), which transmits DC power and data over Ethernet cable, it can be powered directly from included PoE injectors or external PoE switches up to 50 meters. For longer cable runs, multiple PoE extenders can be utilized.
DC power socket accepts 9~52V voltage to work with AC-DC adapters and 12V battery sources. It accommodates reliable powering through local AC outlets, vehicles, solar power systems, and more.
Optimized firmware system delivers reliable cellular internet connection and seamless plug-and-play experience. Contact us to customize firmware and meet specific needs. An online demo is available upon request.
Integrated 4G modem drivers and advanced cellular protocols.
Supports dual SIM cards, band lock, and 4G IP passthrough.
Exclusive keep-alive watchdog automatically tracks and keeps cellular internet connected. Free Traversal Cloud for remote access.
Supports WiFi relay, guest WiFi, WiFi schedule, custom firewall, multiple-WAN, and OpenVPN IPSec WireGuard VPN tunnels.
Integrates durable construction with modular flexibility to bring robust wired and wireless connections for stable operation under extreme conditions. The modular architecture allows flexible installations and easy external antenna upgrades across various use cases.
We aim to deliver robust hardware and provide an exceptional customer experience before and after purchase.
All hardware enjoys a 15-day money-back guarantee, and you can evaluate performance risk-free. It is backed by a one-year quality warranty covering defects. You can access our dedicated customer support team for the product’s life. Our experts can assist with setup, configuration, troubleshooting, or integration.
1 x Outdoor Cellular Modem
2 x Omni 4G Antenna
2 x Omni WiFi Antenna
1 x 10-meter LAN Cable
1 x 52V PoE Injector
1 x Mounting Set & Tool
You must be logged in to post a review.
This CAT12 cellular module has a global design frequency spectrum. It supports the 4G router to connect to worldwide main mobile providers.
| Specification | 4G LTE | 3G |
| Bands: | FDD Bands: B1/2/3/4/5/7/8/12/13/14/ B17/18/19/20/25/26/28/ B29/30/32/66/71 TDD Bands: B34/38/39/40/41/42/43/ B46(LAA) & 48(CBS) |
UMTS: B1/2/3/4/5/6/8/19 |
| Download Speed: | Max 600 Mbps | DC-HSDPA: Max 42 Mbps HSUPA: Max 5.76 Mbps WCDMA: Max 384 Kbps |
| Upload Speed: | Max 150 Mbps | WCDMA: Max 384 Kbps |
| Carrier Aggregation: | Download 3x CA Intra-band and Inter-band |
/
|
| Signal Modulation: | 256QAM | 64QAM |
| Output Power: | Class 3 (23 dBm ± 2 dB) | WCDMA: 23 dBm +1/-3 dB |
| 3GPP Release: | 3GPP Release 12 | |
| GNSS: | GPS / GLONASS / BDS / Galileo | |
EZEN4X Version 3
| CPU Chipset: | MTK7621AT MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | SIM1 / SIM2 / Power / System / Wi-Fi / Mobile |
| Consumption: | ≤ 25 Watt |
| Temperature: | Working: -30 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x PoE & LAN and 1x WAN 2x Nano-SIM card slots 1x Reset button |
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27 ± 2.0 dBm | 24 ± 2.0 dBm |
| Sensitivity: | ≤ -64 ~ -91 dBm | ≤ -55 ~ -82 dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac wave2 | |
| Modulation: | OFDM / BSDK / QPSK / DQPSK / DBPSK | |
| MIMO WiFi: | 2T2R Wave 2.0 MU-MIMO | |
| 2 x 4G Antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi Antenna: | Frequency: 2400~2500MHz / 5150～5850MHz Gain: 4~5dBi / V.S.W.R.: ≤ 2.0 |
| Connector: | N Male |
| Measurement: | Ø 22 mm / Length 180 mm |
| Material: | ABS and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
| Input: |
AC 100~240Volt 50/60Hz |
| Output: | 52Volt 0.5Amps |
| LAN Cable | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
| DC Socket: | Takes wide-range 9~52 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. DC power supply is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48~52V 0.5A.
Function chart is base on firmware Version EV4034
Read more about EV4X firmware releases & tutorial
| Mobile Protocol: | Mobile Data, QMI, and 4G-PPP |
| Command Sets: | MMCLI, QMICLI, and AT command sets |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (Cell ID, RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Mode lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| Link Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and load balancing |
| Firewall: | Open new port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, and Nslookup |
| VPN Tunnel: | OpenVPN, IPSec, and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
