4G Router Firmware
Note: Below function chart is base on firmware version EV3124.
-28%

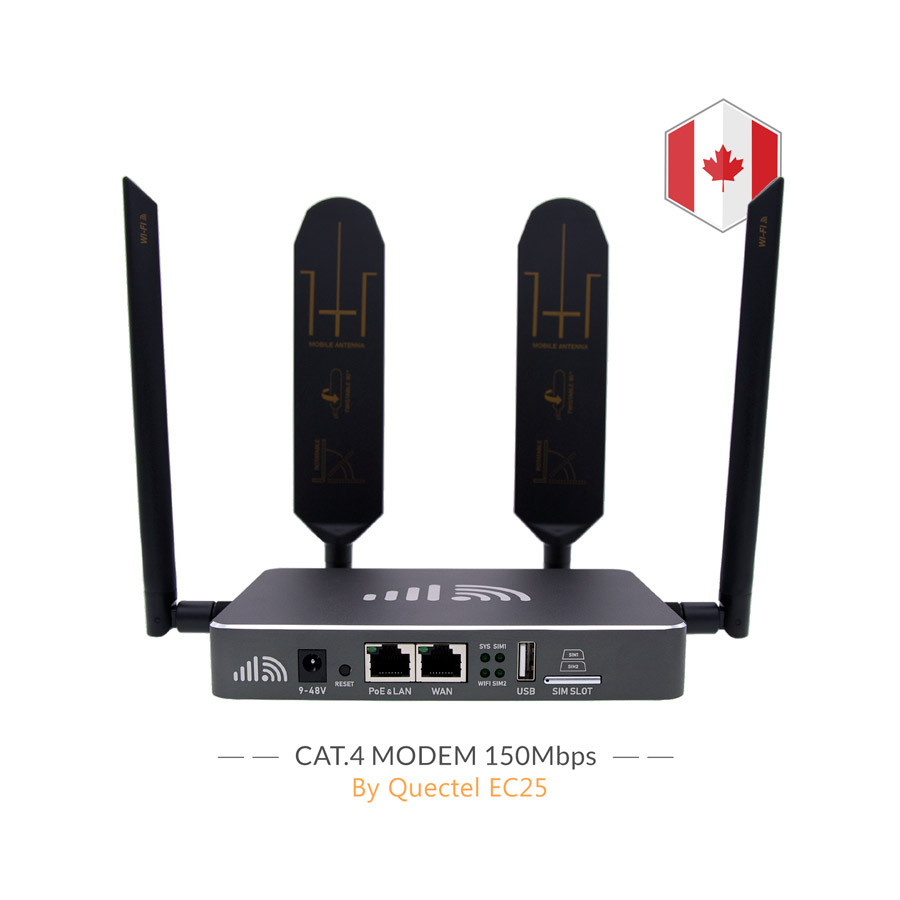

Cellular 4G Router CAT4 LTE Modem SIM Card Slot
Original price was: C$254.C$183Current price is: C$183.
4G WiFi router with SIM card slot and cellular modem helps you stay connected and productive. It has a cellular CAT4 LTE modem to provides max 150Mbps download speed through 3G and 4G cellular networks.
The industrial-grade 4G cellular router integrates durable quality with lightning protection. It’s designed to withstand extreme working conditions and provide reliable cellular internet to homes, offices, and industrial applications.
3 in stock
Industrial 4G LTE Router Canada
Cat4 LTE Modem Inside with Dual-SIM Slot & High-Gain Antennas

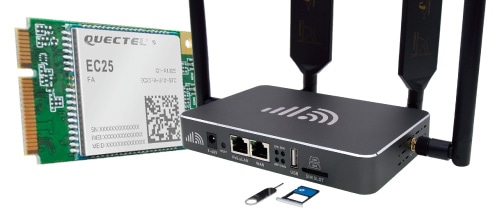

Industrial 4G LTE Modem
Cat.4 modem for Canada cellular providers
Dual SIM slots for Nano SIM cards
High-gain 4G paddle antennas
Long-range Wi-Fi Hotspot
100~200 yards powerful Wi-Fi signal
Up to 27dBm (1-Watt) 2.4GHz Wi-Fi boosters
Replaceable SMA standard Wi-Fi antennas
4G Backup & WAN Connections
Control priority of backup Internet connections
Accepts input WAN & output LAN Ethernet
Access router remotely from Traversal Cloud
Industrial-grade Rugged Router
Built-in 6KV 1.5KV lighting protection module
Against extreme weather -40°C ~ +80°C
Wide-range power source 48V PoE & 9~48V DC
Canada 4G LTE Modem
Supports Canadian 3G and 4G cellular networks.
Cat.4 LTE modem provides max 150Mbps download speed.
Dual Nano SIM card slot. One of the SIM cards is for backup.
Built-in QMI, and PPP mobile protocols, supports custom APN settings.
Innovation 4G Cellular Antennas
Wide-range frequency – support all 4G cellular networks.
Twistable 4G paddle antenna – adjust the direction easily.
SMA standard sockets – support external antennas.
A Safe & Open-sourced Firmware
Powerful firmware for 4G router, with QoS & OpenVPN.
Rooted with full authority, SSH, FTP, and software center.
Pre-built the bootloader. Contact us for online demo test.
Home & Office
4G backup & WAN Internet
Supports up to 57 concurrent users
Industrial Applications
Provides LAN Ethernet and Wi-Fi
for IoT, CCTV, Vending machine, etc
Logistics & Caravan
Flexible installation & power sources
Enhanced 4G signal reception
Shop / Hotel / Restaurant
Wi-Fi network for guests
Enabled smart traffic control
Package Contents - What Will You Get
Package Contents
1 x Canada 4G Cellular router
2 x 4G paddle antenna
2 x Wi-Fi whip antenna
1 x 1-meter LAN cable
1 x Power adapter – US plug
Be the first to review “Cellular 4G Router CAT4 LTE Modem SIM Card Slot”
You must be logged in to post a review.
Cat4 Canadian Cellular LTE Modem
| LTE Category: | CAT.4 (3GPP E-UTRA Release 10) |
| 4G FDD Bands: | B2/B4/B5/B12/B13/ B14/B66/B71 Download max 150Mbps / Upload max 50Mbps |
| 3G Bands: | B2/B4/B5 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity (Except LTE B2) |
| Temperature: | Working: -40°C ~ +80°C |
| Working Area: | North America |
| Certification: | GCF / FCC / IC / PTCRB AT&T / Verizon /T-Mobile / Telus /Bell |
* Make sure your SIM card is unlocked and activated! *
Support cellular networks in North America, including Canada, USA, Mexico, and most of the Latin American countries.
EZEN3X Motherboard
| CPU: | Qualcomm Atheros QCA9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8mm) |
| WAN/LAN port: | 10/100Mbps |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80°C Storage: -50 to +90°C |
| Surge Protection: | Common-mode 6 kV Differential mode 1.5 kV |
| Humidity: | 10%~90% RH |
| Measurement: | Router 230x175x70mm / 980g |
Antennas
| 2 x 4G LTE antenna: | Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| Connector: | SMA Male (Not RP) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412~2484 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
Power Sources
| AC Adapter: | Input: 110~240VAC 50/60Hz Output: 12Volt 2Amps |
| LAN Cable: |
1-meter LAN cable included |
| DC Socket: |
Wide range DC 9~48Volt |
| Mobile Protocol: | Mobile Data and 4G-PPP |
| Command Sets: | MMCLI & AT commands |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (Cell ID, RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Network lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| SIM Switching: | Primary SIM1 by default Choose SIM card or set to auto switch SIM cards |
| Accessibility: | Web GUI interface, SSH terminal, Telnet, and FTP/SFTP |
| LAN/WAN Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and load balancing |
| Firewall: | Open new port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, Nslookup |
| VPN Tunnel: | OpenVPN (v2.5.3) and WireGuard VPN |
| Remote Control: | Free traversal cloud * TR069 available on demand |
Contact Us
Please feel free to contact us if you need any further information about the product.
