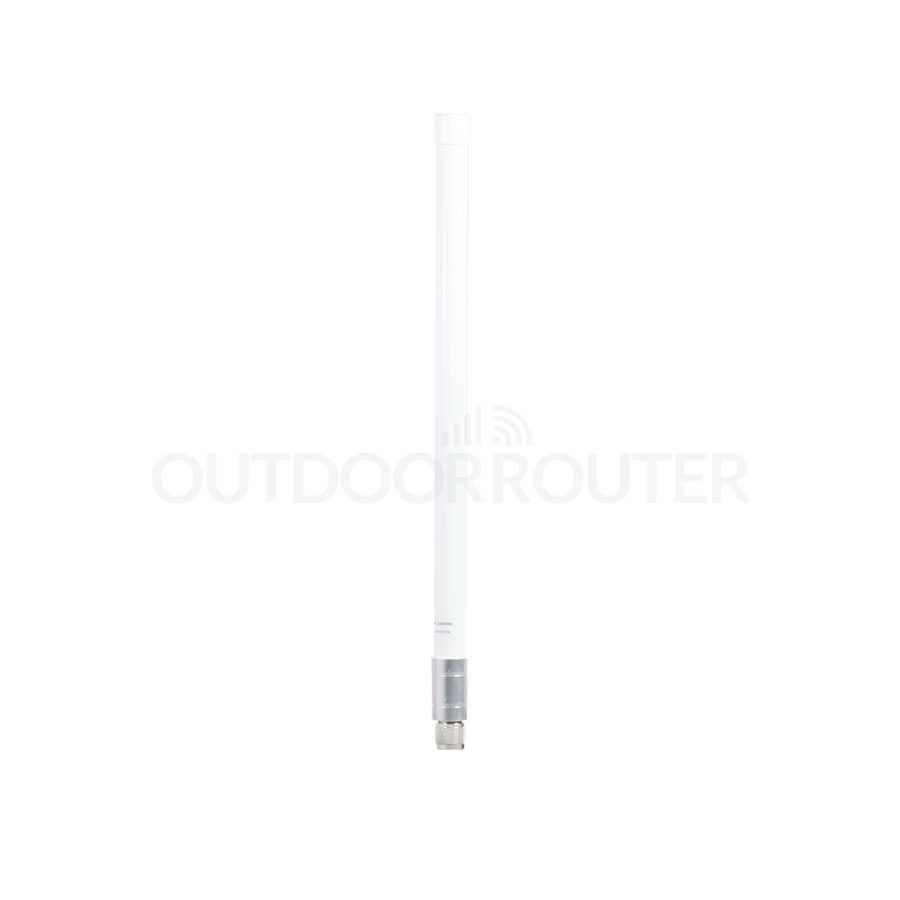

Outdoor FRP 4G Omni Antenna
C$52 – C$91
5dB high gain 4G Omni antenna made of Fiber Reinforced Plastic. Waterproof protection, designed for rugged deployments outdoor. Wide 4G cellular frequency 698~2700MHz.
Wideband cellular frequency 698~2700MHz
Supports all of the 2G/3G/4G mobile networks
High-gain 5dBi and low V.S.W.R
All-Directional Omni antenna
Got a weak 3G/4G signals? Upgrade the cellular antenna on your 4G router!
The fiber-reinforced polymer (FRP) 4G Omni Antenna has 4~5dBi high-gain and minimum
voltage standing wave ratio (V.S.W.R.). Working in 360° horizontal beamwidth, the 4G omnidirectional antenna receives and transmits wireless signals in all directions.
Featured by the marine-class quality and water-resistance, the FRP 4G Omni antenna support outdoor 24/7 working. Due to the high gain and low V.S.W.R provide the high-performance cellular connection with the mobile signal base station and improve the signal reception on wireless-enabled devices, including 4G router, 4G modem, 4G CPE, and so on.
FRP (fiber-reinforced polymer) is a composite material made of a polymer matrix reinforced with fibers, usually used in aerospace, automotive, marine, and construction industries. The FRP radome provides ultra-strong protection to the antenna.
LPDA Log-Periodic Antenna Specifications
| Frequency | 698~960/1700~2700MHz |
| Polarization | Vertical |
| Gain | 4~5 dBi |
| V.S.W.R | ≤ 1.5 |

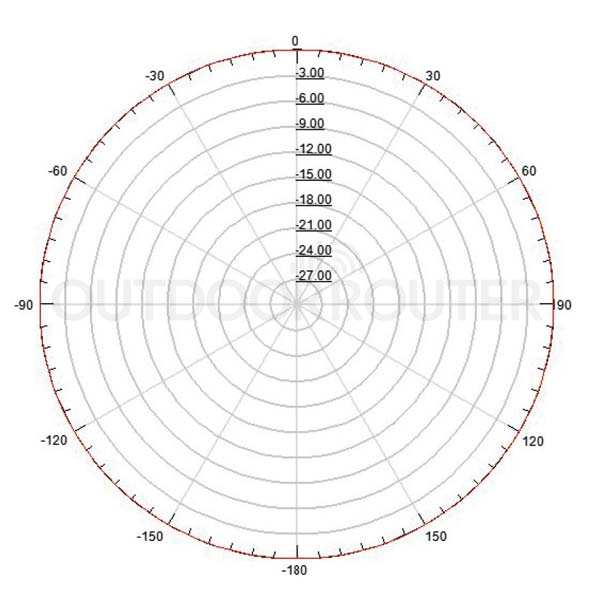

| Horizontal Beamwidth | 360° |

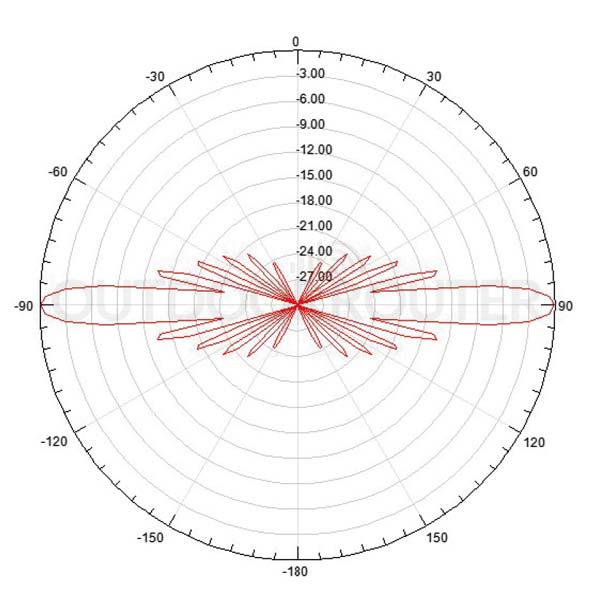

| Vertical Beamwidth | 30° |
| Max Power | 10 Watt |
| Impedance | 50 ohm |
| Lighting Protection | Direct Ground |

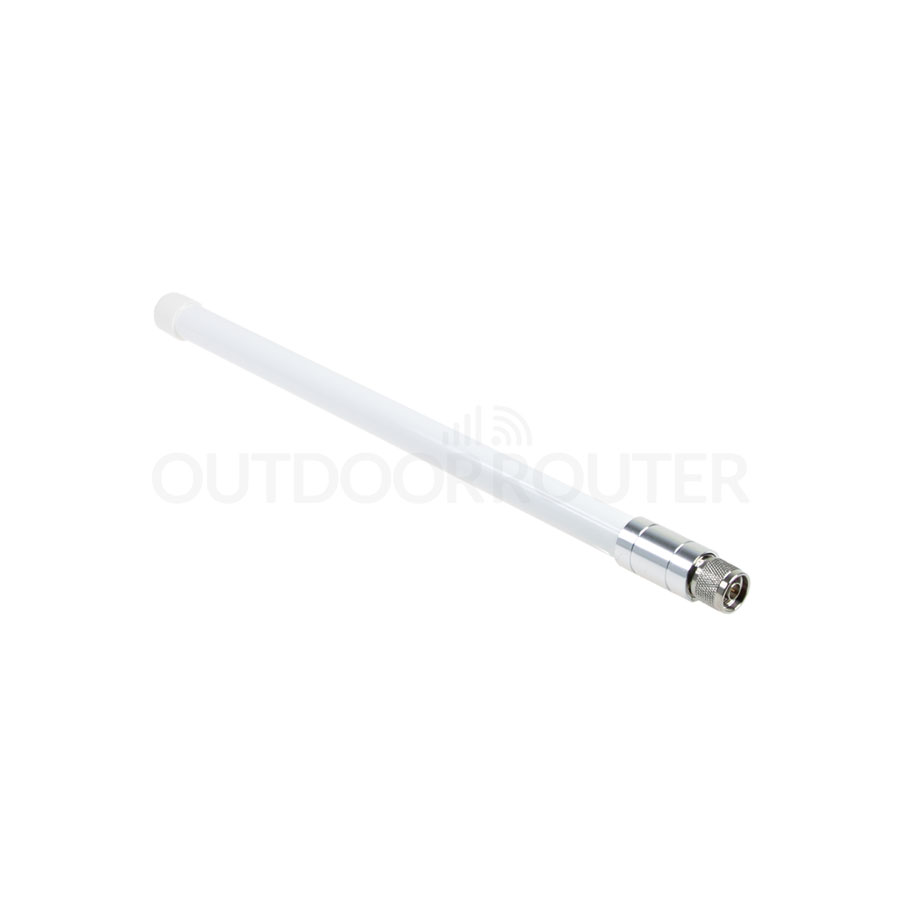

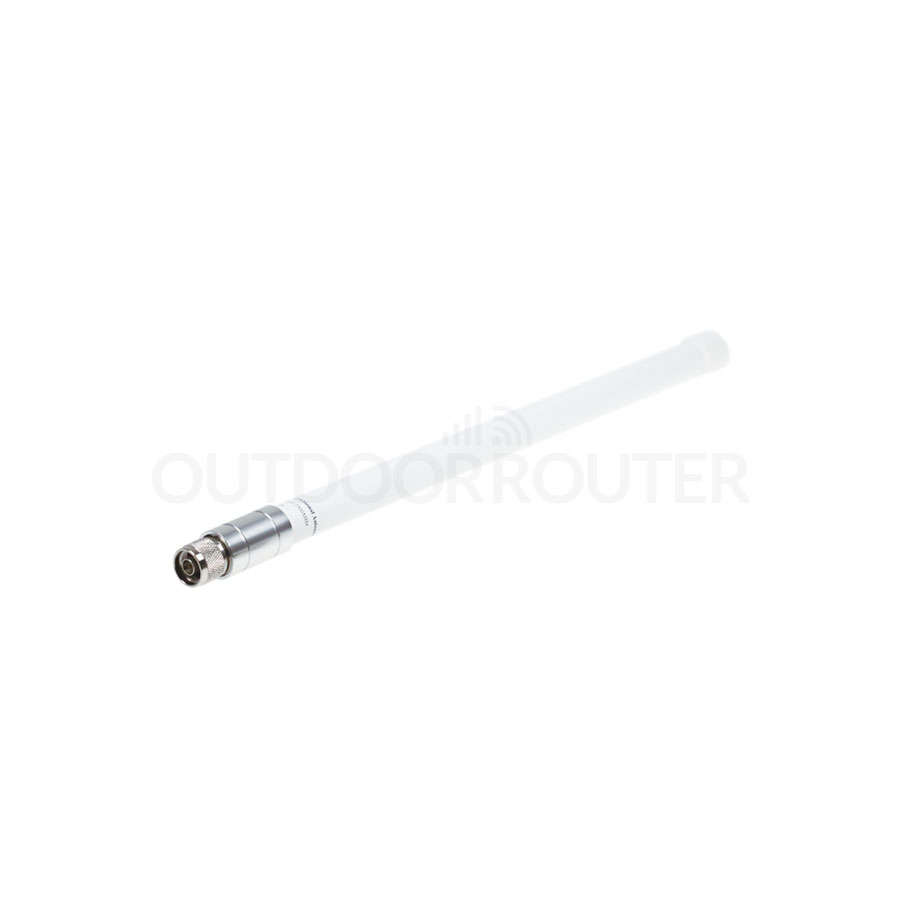

| Connector | N-Male |
| Radome Material | FRP (Fibre-reinforced plastic) |
| Radome Color | White |
| Radiating Element | Copper (CU) |
| Dimension | Dia 20 x 400mm |
| Weight | 160 gram |
| Temperature | -40~70 degree |
Upgrade Mount with Cable
Magnetic Mount
The heavy-duty antenna magnetic mount is designed for multipoint mobile applications, including vehicles, boats, public transportation, and so on.
The 90mm diameter stainless steel mount has premium quality magnetic with extreme holding power—the mounting location including flat surfaces of the roof, bumper, trunk lid, etc.
The stainless steel has a flannelette cover to avoid scratches to the object’s surface.
Extension Cable
The magnetic mount includes a 5-meter RG58 coaxial cable with an N-male or SMA-male end. The RG58 coaxial extension cable is a braid screen that features a coaxial cable, black PVC sheathed, and solid polythene insulated TC.
