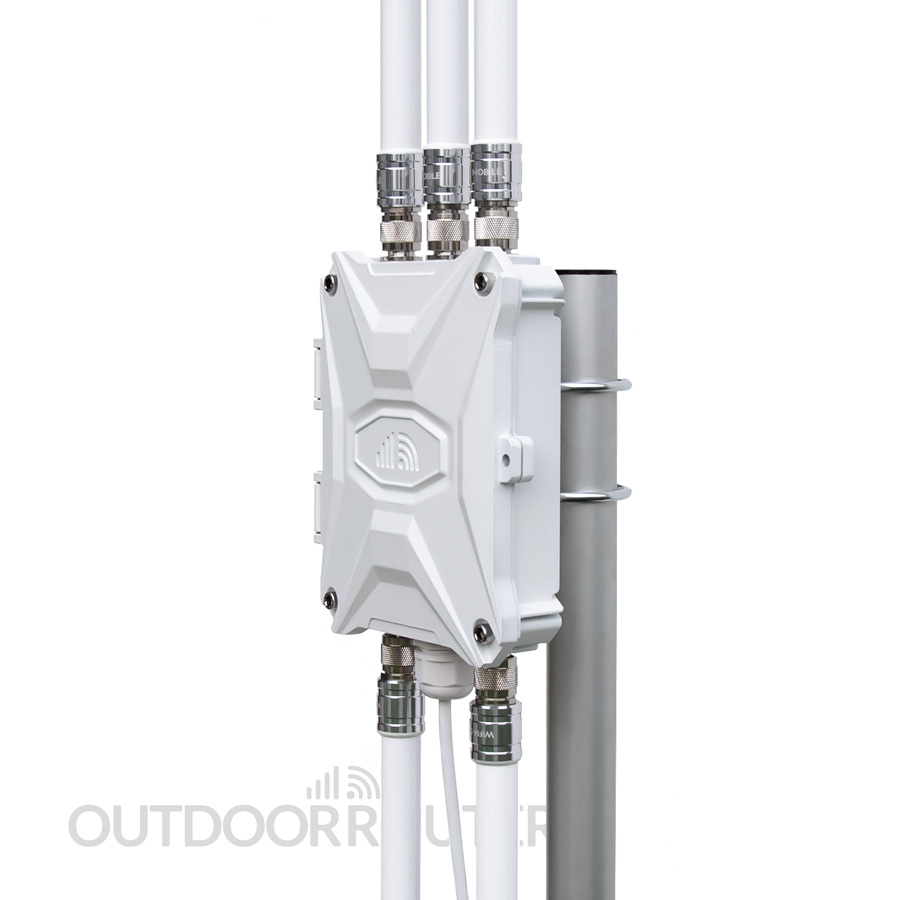

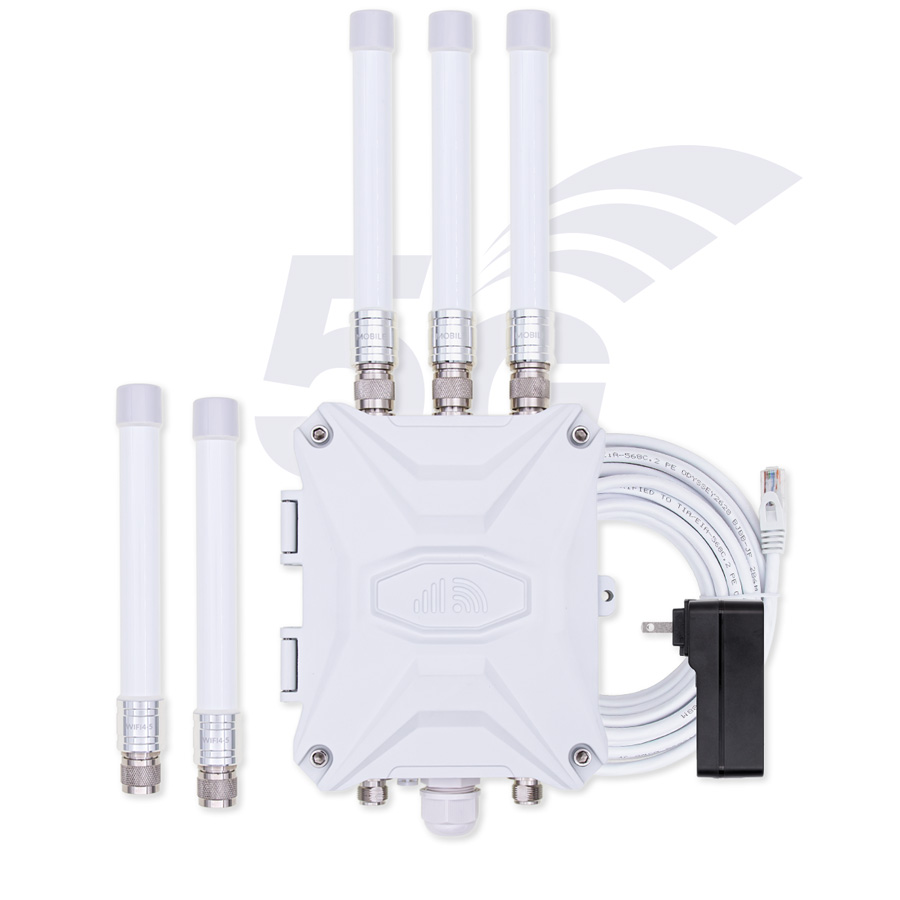

Outdoor Router 5G SIM Slots Cellular Modem External Antennas
Original price was: C$692.C$636Current price is: C$636.
The outdoor 5G router has a 5G-NR dual SIM card modem and provides broadband cellular internet for homes, shops, industrial sites, rural areas, and outdoor events. It supports Canada 5G-NR cellular networks and global roaming with 3G/4G fallback.
The external antennas receive the best cellular signals outside and broadcast outdoor WiFi 100~300 meters. The outdoor 5G router has an IP67 waterproof enclosure that suits rugged applications and challenging environments.

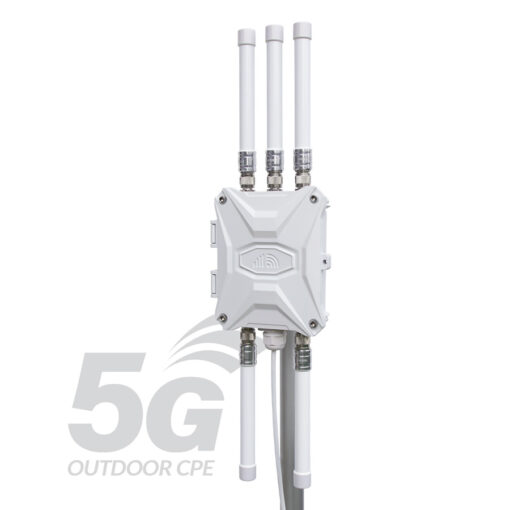

Canada Outdoor 5G SIM Router
Cellular 5G modem with dual SIM card slots
Waterproof router with external antennas
5G-NR Cellular Modem
Max 3.4Gbps 5G internet download speed
Supports Canada 4G/5G networks
X62 5G-NR module with 4G Cat.19 fallback
External 5G WiFi Antennas
High-gain MIMO omni external antennas
Standalone WiFi hotspots 2.4G & 5.8G
Boosted WiFi covers 100-300 meters
Waterproof 5G Router
Rugged industrial-grade 5G-NR gateway
IP67 waterproof enclosure & surge protection
PoE Ethernet and DC Power
52V PoE injector with 1Gbps Ethernet
DC socket for wide 9~48 Volt power
What is a Outdoor 5G SIM Router?
The outdoor 5G router connects the SIM card to 5G cellular networks and delivers high-speed internet. It can provide broadband 5G internet on WiFi and Ethernet to phones, computers, cameras, switches, and indoor routers.
Why Use 5G Router in Outdoor?
Due to barriers and interference, the indoor 5G signal might be weak and unstable. The outdoor 5G router is designed to install outside to directly pick up the best 5G signals on its external antennas. It is a standalone wireless router with LAN Ethernet and dual WiFi hotspots to provide 5G internet for outdoor events, outside cameras, IoT sensors, etc.
Outdoor 5G Router Benefits
The outdoor 5G router is unlocked and supports global NSA/SA Sub6 GHz 5G-NR networks. 3G/4G fallback enabled, it can connect to 3G and 4G LTE networks while a 5G signal is unavailable. You can use Nano SIM cards on both SIM slots and choose the cellular carrier & data package flexibly.

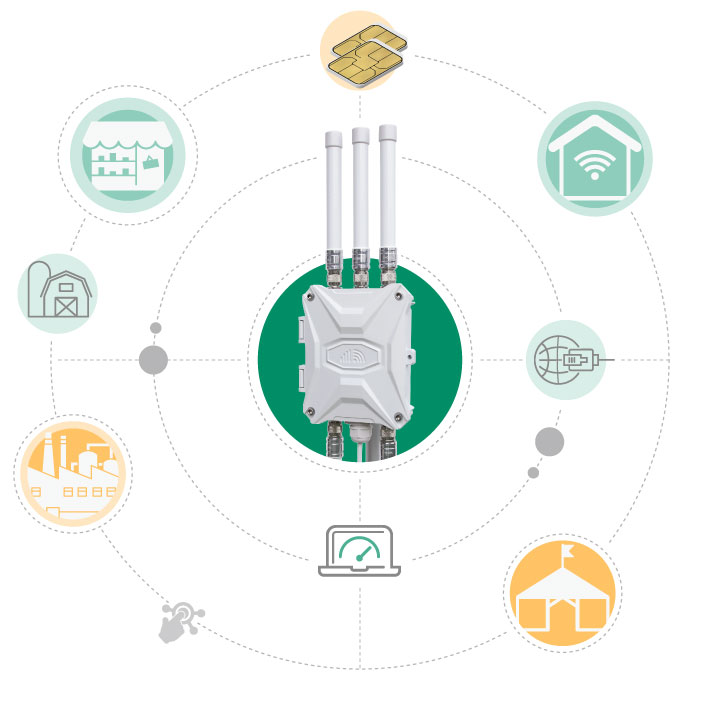

Outdoor 5G SIM Router Applications
Industrial 5G Internet Gateway
Enables industry automation and control
For vehicle communication & coordination
High stability with backup SIM card
5G WiFi Hotspots
Large-scale broadband wireless access
4G 5G Backup Connectivity
Redundancy for wired internet connections
Temporary & Outdoor Events
Short-term internet for live concerts etc
Deployable network for emergencies

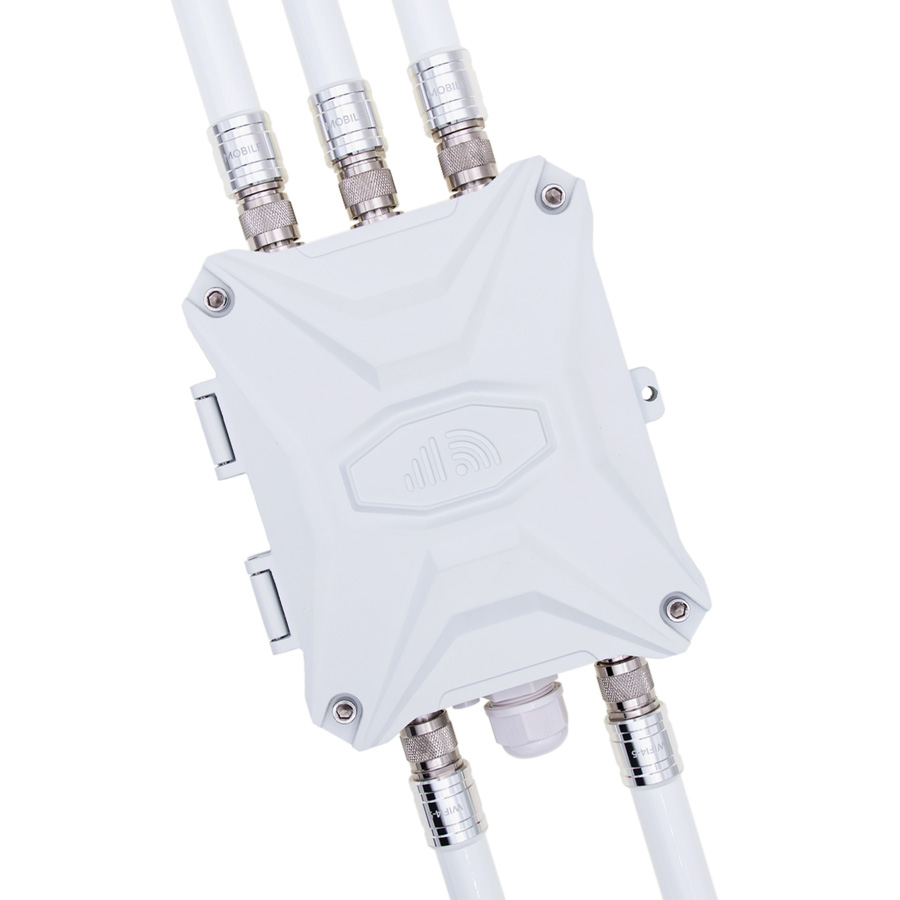

Waterproof Router & 5G-NR Firmware
The Outdoor 5G Router has an IP67-rated patented waterproof enclosure with white matt outdoor coating for work in extreme weather and demanding environments in the long term.
IP67 Waterproof Enclosure
Anti dust and water immersion. Passed IEC 60529 waterproof tests.
Outdoor Lighting Protection
Common 6KV – Differential 1.5KV. Support external surge protectors.
Against Extreme Weather
Withstand temperature -40°C ~ +80°C celsius.
Powered by open-source firmware, the 5G-NR cellular modem router firmware is plug-and-play, easy to use, root authority granted, and with advanced tools.
Integrated 5G modem drivers and multiple mobile protocols.
Supports dual SIM cards, band lock, and mobile IP bridge.
Supports WiFi relay, guest WiFi, WiFi schedule, custom firewall, multiple-WAN, VPN tunnels, and free cloud access.
Please contact us for the online demo.

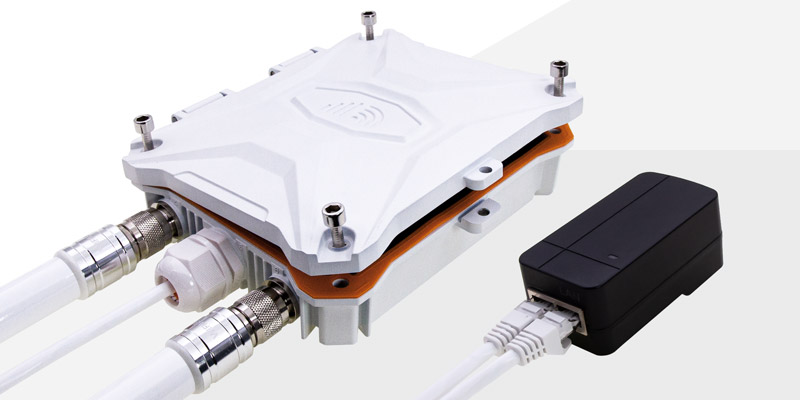

Power Sources – PoE & DC Powers
Outdoor 5G router supports seamless switching between PoE and DC powers.
The default power source is an 802.3at standard PoE injector. You can use the included 10-meter CAT6 LAN cable to power up the router and get 1Gbps Ethernet on the PoE injector. It also accepts electric power from a 802.3af/at standard PoE switch and PoE extender.
The Ø5.5/2.1mm DC socket supports a wide range 9~48 Volt DC power, including typical 12 Volt DC power. You can also use an AC-DC power adapter or 12 Volt battery pack to power up the outdoor 5G router.
What Will You Get In The Package
The package includes the below contents along with a 15-day money-back warranty and one year quality guarantee.
You will also receive our zealous customer service and technical support.

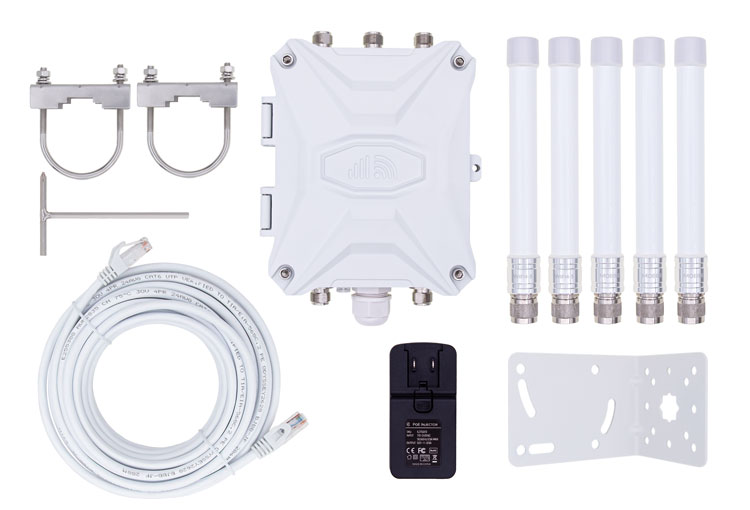

Package Contents
1 x Outdoor 5G Router
3 x Omni FRP 5G-NR Antenna
2 x Omni FRP WiFi Antenna
1 x 10-meter Cat.6 LAN Cable
1 x PoE Injector with US Plug
1 x Mounting Set & Tool
Note: Exclude SIM cards
Frequently Asked Questions
Resources
Click Specification Tab
to view technical specifications.
Download Quick Guidance of EZR34T Outdoor Router
Visit the Online User Manual
Got a question? Contact Us or acquire an online demo.
Services
How long does it take to arrive?
We offer free shipping and safe express delivery from the nearest warehouse. Lead time is 24 hours, and the transit time is 2~6 working days. The shipping couriers are UPS, Canada Post, and FedEx.
What is your return policy?
We offer a 15-day money-back guarantee upon receiving the shipment and provide a 1-year warranty on the product quality. Check more on the warranty policy.
Modem & SIM Card
What kind of SIM card & data plan are suitable?
The outdoor 4G router supports major cellular networks in the North America. The SIM card slot takes a Nano standard SIM card, 0.5" by 0.3" inch (12.3x8.8mm).
The 4G modem router is unlocked to use any workable data plan, such as a regular phone SIM, data-only plan, and IoT data plan. Please ensure the SIM card is activated and unlocked. A locked SIM card could only work on the specific bound modem device.
What is the difference between these outdoor routers?
This EZR34-012 router offers 1Gbps LAN and 1200Mbps WiFi with a faster speed CAT12 modem. The EZR33L series has 100Mbps LAN and 300Mbps WiFi with selectable CAT4/6 modems. The CAT6/12 LTE-Advanced modems can provide fast speed for high-traffic applications such as video streaming. The CAT4 model is more suitable for low-traffic demands and applications such as IoT devices.
| Router SKU | LAN | WiFi | LTE Category | Max Download | Carrier Aggregation |
| EZR34-A012 | 1Gbps | 1200Mbps | CAT12 | 600 Mbps | Max 3x CA |
| EZR34T-A6 | 100Mbps | 300Mbps | CAT6 | 300 Mbps | Max 2x CA |
| EZR33T-A4 | 100Mbps | 300Mbps | CAT4 | 150 Mbps | No |
Outdoor 5G Router Usages

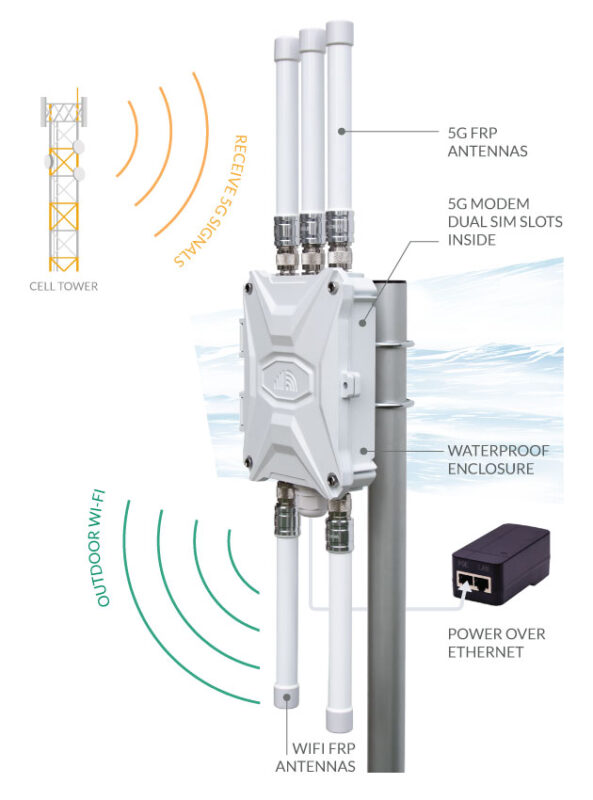

How does the outdoor 5G router work?
The outdoor 5G router has dual SIM card slots and a 5G-NR mobile modem inside. It has external omnidirectional antennas to pick up the best outdoor mobile signals.
After inserting a workable 5G data-plan SIM card, the 5G modem connects to the mobile networks and provides broadband 5G internet connections on WiFi and Ethernet.
Does it support mobile carrier aggregation?
The 5G-NR modem supports max 4x carrier aggregations. The carrier aggregation connection will automatically turn on when there are sufficient signals.
How is the 5G router workable in my area?
Firstly, you need an activated SIM card with a 5G data plan and enough data allowance. Then, the location should have a fair 5G signal coverage. You can put the SIM card in a 5G mobile phone and check the 5G signals. To measure the 5G signal quality accurately, please check the 5G-NR signal tutorial.
If the mobile signal is too weak, suggest changing the location and installing it at a higher altitude. Upgrading the 5G antenna to higher-gain and directional aerials is helpful to get the best available signals.
Using a mobile signal booster with outdoor 5G routers is not recommended since it increases the noise level, which causes slower internet speed and even massive packet loss.
How to install the outdoor router?
The outdoor 5G router includes a complete mount kit, including brackets, wrench, and manual. You can turn the L-shape bracket to install the router in multiple directions. The suggested installation is on a vertical Ø35~50mm pole. The pole is not included.
Can I power the outdoor router with 12Volt power?
The outdoor 5G router uses default IEEE 802.3at standard 52Volt PoE power.
It has a DC socket to take a wide range of 9~52Volt DC power. The supported DC jack is Ø 5.5/2.1 jack. Do not use overloaded electric power. For example, the typical 12Volt power should have a 1.5~2.0Amps current.
Does it support remote access?
We offer free cloud access on all outdoor routers. You may access the router on a web browser anytime, anywhere. Due to privacy and security, the cloud access is turned off on default settings.
Be the first to review “Outdoor Router 5G SIM Slots Cellular Modem External Antennas”
You must be logged in to post a review.
Global 5G-NR SIM Modem
The RM520N 5G-NR mobile SIM modem is a Qualcomm x62 5G sub-6GHz M.2 module.
5G-NR Global SIM Modem
| Specification | 5G NR | 4G LTE |
| Category: |
3GPP Release 16 (R16) |
Download CAT19 Upload CAT18 |
| Bands: | 5G-NR NSA & SA: N1 2 3 5 7 8 12 13 14 18 20 25 26 28 29 30 38 40 41 48 66 70 71 75 76 77 78 79 |
FDD: B1 2 3 4 5 7 8 12 13 14 17 18 19 20 25 26 28 29 30 32 66 71 TDD: B34 38 39 40 41 42 43 48 LAA: 46 |
| Download Speed: | 5G NSA: 3.4 Gbps 5G SA: 2.4 Gbps |
1.6 Gbps |
| Upload Speed: | 5G NSA: 550 Mbps 5G SA: 900 Mbps |
200 Mbps |
| 3G WCDMA: | Band 1 2 4 5 8 19 DL 42 / UL 5.76 Mbps |
|
| Temperature: | Working: -30°C ~ +75°C | |
| Modem Cert.: | GCF PTCRB CE Anatel CCC RCM IC FCC JATE TELEC KC NCC RoHS | |
| Region: | Global |
Note: The presented download and upload speed are theoretical max rates, and the actual speed rate depends on network conditions.

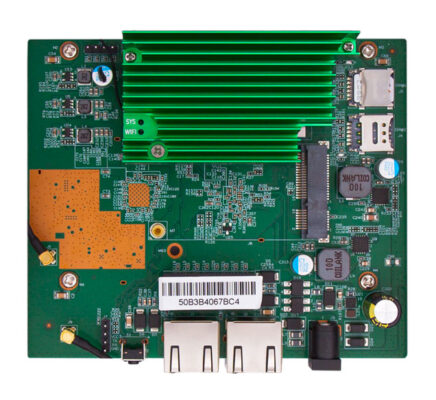

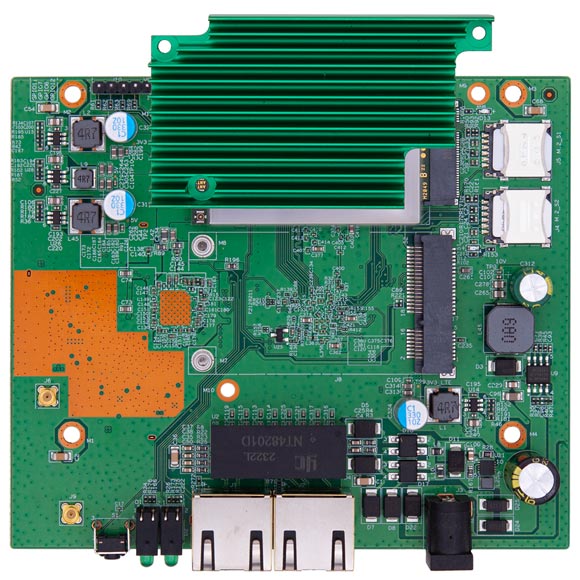

Motherboard Top Down View
EZEN4X Version 2
EZEN4X_V2 - Router Motherboard
| CPU Chipset: | MTK7621AT MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | SIM1 / SIM2 / Power / System / Wi-Fi / Mobile |
| Consumption: | ≤ 25 Watt |
| Temperature: | Working: -30 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x PoE & LAN and 1x WAN 2x Nano-SIM card slots 1x Reset button |
1200M Dual-band WiFi
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27 ± 2.0 dBm | 24 ± 2.0 dBm |
| Sensitivity: | ≤ -64 ~ -91 dBm | ≤ -55 ~ -82 dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac wave2 | |
| Modulation: | OFDM / BSDK / QPSK / DQPSK / DBPSK | |
| MIMO WiFi: | 2T2R Wave 2.0 MU-MIMO | |
Outdoor FRP Antennas
| 3 x 5G Antenna: | 600~960 / 1710~2170 / 2300~2700 / 3300~3800 MHz 2 ± 1 dBi Gain / ≤ 4.0 V.S.W.R. / >35% Efficiency |
| 2 x Wi-Fi Antenna: | 2400~2500 / 5150~5850 MHz Gain: 5 dBi / V.S.W.R.: ≤ 1.92 / >65% Efficiency |
| Connector: | N Male |
| Measurement: | Ø 20 mm / Length 200 mm |
| Material: | Fiberglass pipe and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector w/ Ethernet
| Input: | AC 100~240Volt 50/60Hz |
| Output: | 52Volt 0.5Amps |
| LAN Cable | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~52 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. DC power supply is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48~52V 0.5A.
EV4X - 5G Router Firmware
Function chart is base on firmware Version EV4041
| Mobile Protocol: | Mobile Data, QMI, and 4G-PPP |
| Command Sets: | MMCLI, QMICLI, and AT command sets |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (RSRQ RSRP SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Mode lock between 3G 4G and 5G 3G/4G/5G Band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/Off as you set |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| Link Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | SQM and Multi-WAN load balancing |
| Firewall: | New port, port forwarding, and custom rules |
| Diagnostics: | Ping Traceroute and Nslookup |
| VPN Tunnel: | IPSec OpenVPN and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
