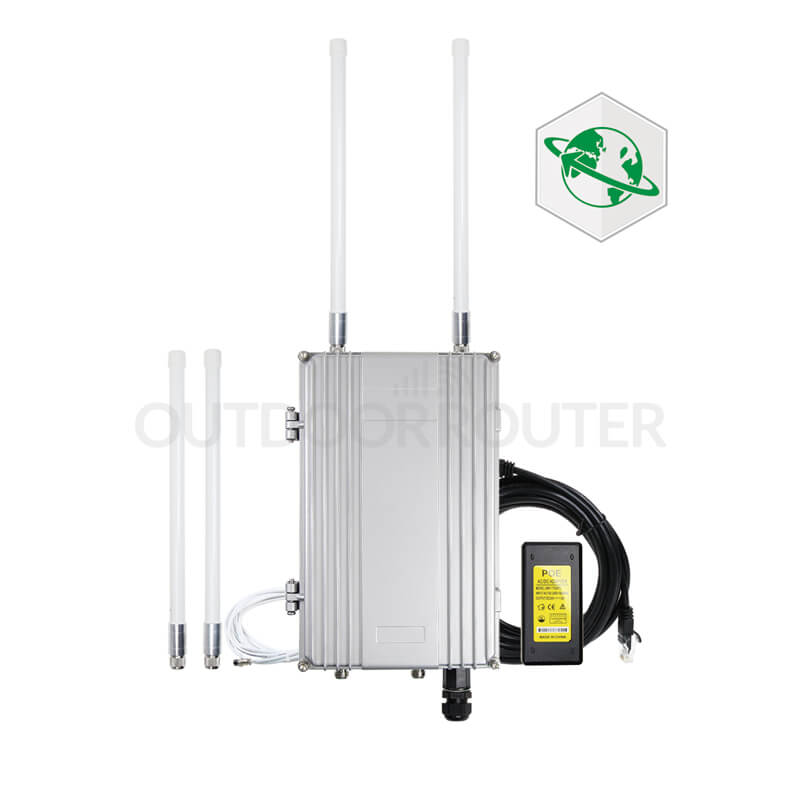

Solar Powered MIMO 4G Outdoor Router
C$647
Solar-powered outdoor router with 4G mobile modem inside. Adjustable mobile modem solution for deployment worldwide. Built-in 30,000mAh Li-ion battery to support 3-day working continuously. Integrated with the solar power controller. Work with 12Volt solar panels.
MIMO 4G with worldwide mobile modem solution
2.4G MIMO Wi-Fi with 25~27dBm booster for 100~250 meters

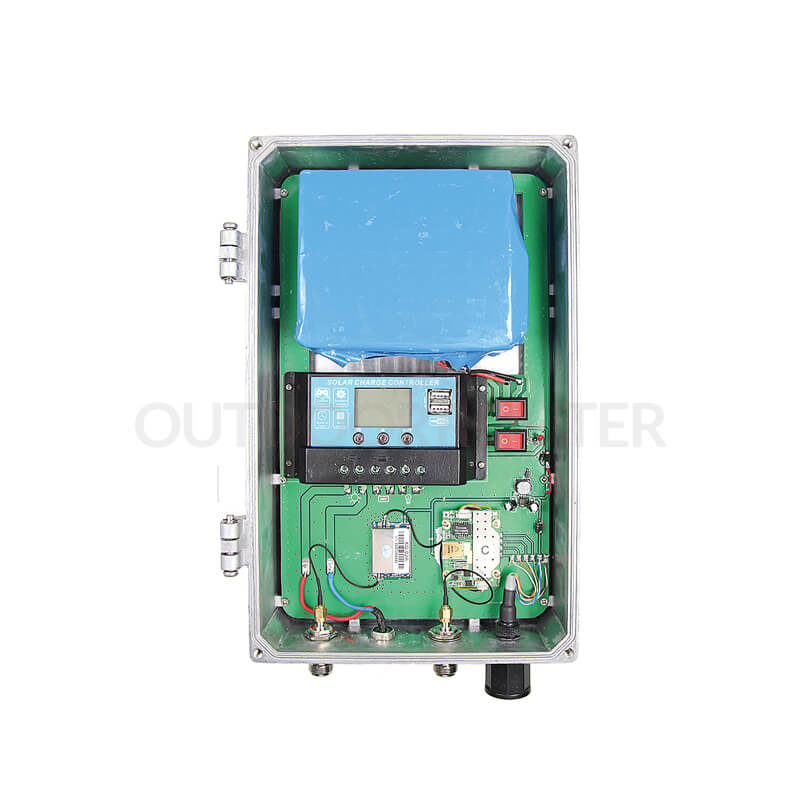

Built-in 30,000mAh battery and the solar power controller
Sealed in IP67 rated metallic case withstand extreme weather
Awesome new model in the making. Check back later.
Out of stock
Solar Battery Powered Outdoor 4G Router
Built-in 30,000mAh Li-ion battery and 12Volt solar power controller

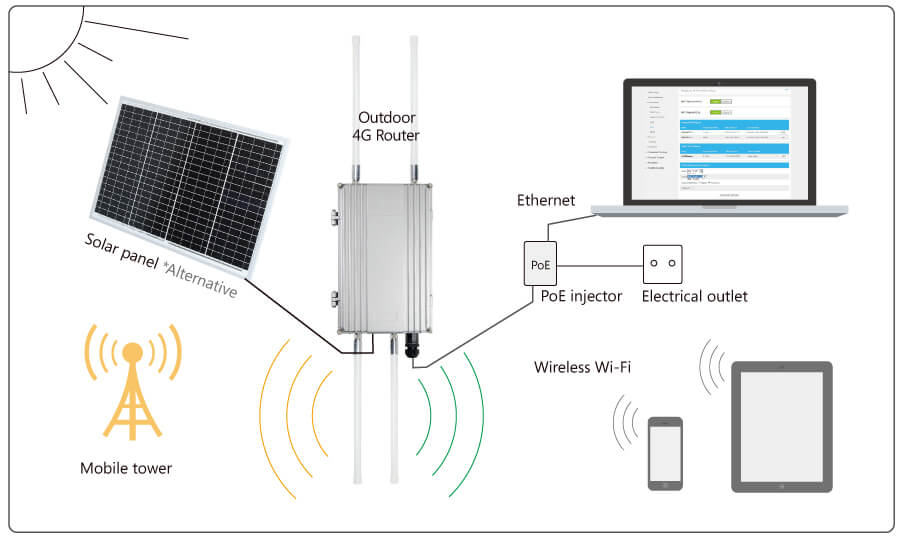

How Does Solar Battery 4G Router Works?
Designed for use in remote areas without electric power sources except for solar power.
Work on multiple power sources:
- 12Volt solar panel
- 9~24Volt DC power source
- 48Volt PoE injector (or PoE switch)
Worldwide Mobile Modem Solution
MIMO 3G/4G modem with high sensitivity
Download speed up to 150~300Mbps
Various mobile modems available
High-gain 4G FRP antennas
2.4G Wi-Fi Booster Inside
2T2R MIMO Wi-Fi technology
Wi-Fi transmission speed up to 300Mbps
Wi-Fi booster inside, cover 110~280yd radius
Support up to 57 concurrent Wi-Fi users
Multiple Power Sources
PoE support IEEE 802.3af/at
9~24Volt DC power input
30,000mAh Li-ion battery inside
Built-in 12Volt solar power controller
IP67 Waterproof Protection
Designed for rugged deployments
IP67 hardened aluminum alloy case
Waterproof connectors
Integrated surge protection

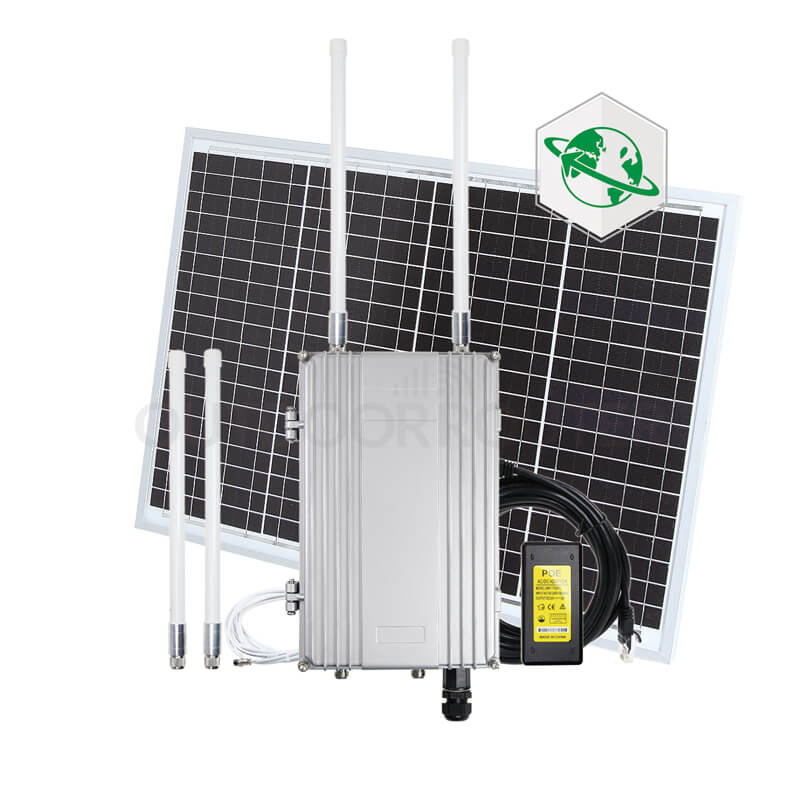

Alternative Solar Panel
Add an extra 50x67cm solar panel together with the 4G router. Polycrystal silicon solar cells bring you high-effective solar power.
Make sure to use the 12Volt solar panel when connecting to your own solar panel system.
* Solar panel bracket is excluded.
2.4G MIMO Wi-FI with Booster
Integrated with 25~27dBm Wi-Fi booster, covers up to 110~280 yards radius in the open area.
Complying IEEE 802.11b/g/n & IEEE 802.3u standards and 2T2R MIMO Wi-Fi technology, the outdoor MIMO router provide high-speed wireless speed up to 300Mbps. It accepts to connect up to 57 concurrent users to the Wi-Fi network.
You can enable/disable Wi-Fi, hide Wi-Fi SSID, encrypt Wi-Fi hotspot, set up the firewall, and filter MAC address for the Wi-Fi network. The Ethernet (LAN) connection is also available.
Solar, Battery & PoE
Powered by PoE (Power over Ethernet), you only need one LAN cable for both power and data. It supports 802.3af/at PoE standards, and you can power up the outdoor router with 48Volt PoE switches over as long as 100 meters LAN cable.
The default 48Volt PoE injector and 10-meter LAN cable are included in the package.

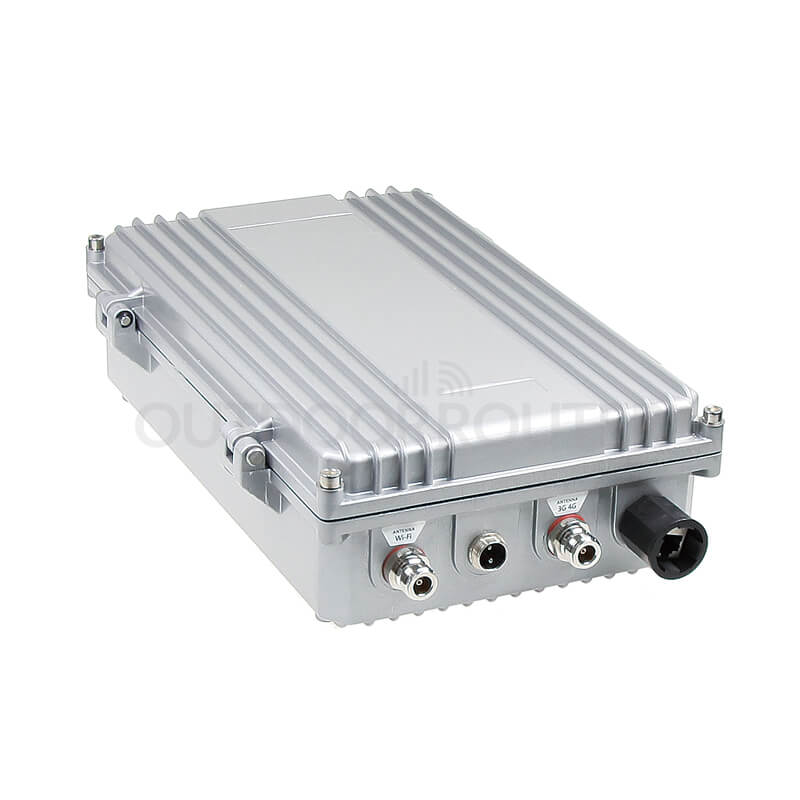

IP67 Rated Waterproof Protection
Ideal for deploying in rural areas such as the park, coast, camping site, construction site, and outdoor events of the golf course, outdoor concert, flea market, and business summit.
IP67 hardened industrial-grade aluminum alloy case enclosure the 4G Outdoor Router to withstand extreme weather conditions and rugged deployments. The outstanding metallic case could protect the 4G router from dust and be capable of withstanding water immersion between 15 cm and 1 meter for 30 minutes.
What Will You Get in the Package

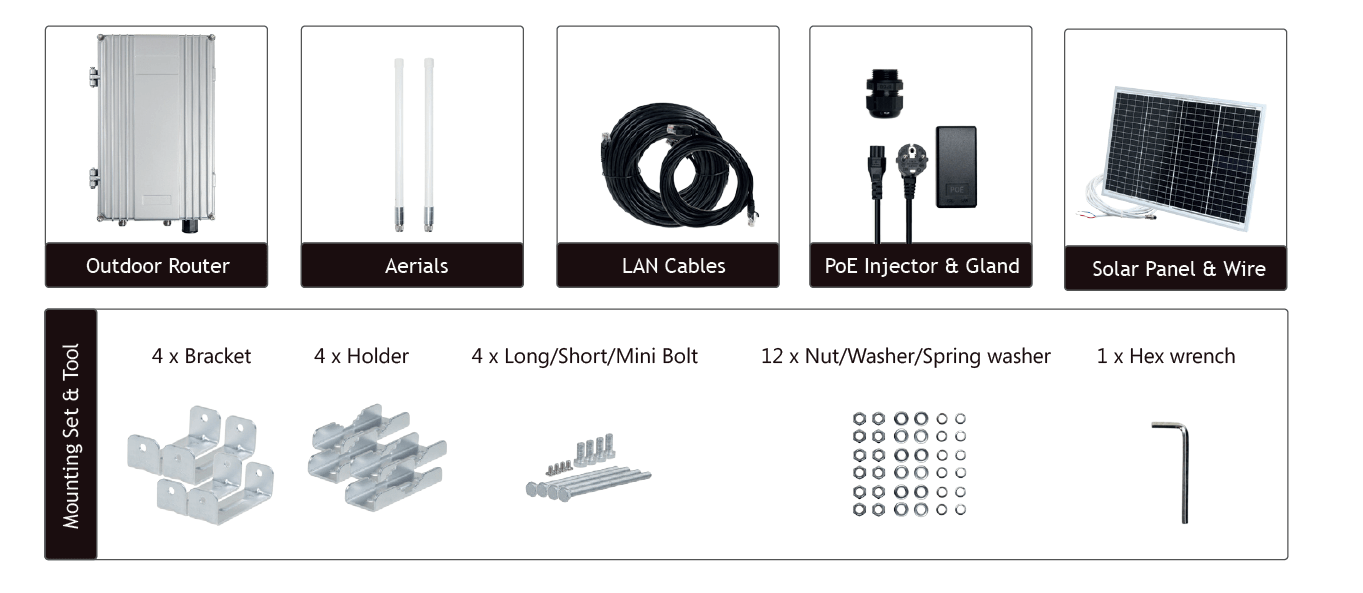

Package Contents
1 x Outdoor 4G router
4 x Fiber reinforced plastic aerial
1 x 10-Meter LAN cable
1 x 3-Meter LAN cable
1 x PoE injector
1 x Cable gland
1 x Mounting set and tool
1 x Solar panel *Alternative
1 x 5-meter power wire
2 reviews for Solar Powered MIMO 4G Outdoor Router
Add a review
You must be logged in to post a review.
Worldwide Cellular Modems
| SKU: | Y4AF | S6A | |
| LTE Category: | CAT 4 | CAT 6 | |
| LTE Version: | 3GPP E-UTRA Release 10 | 3GPP E-UTRA Release 11 | |
| 4G Bands: | FDD LTE – B2/B4/B5/B12/B13/B13/B66/B71 Download max 150Mbps Upload max 50Mbps |
B1/2/3/4/5/7/8/12/13/20/25/26/29/30/B41 Download max 300Mbps Upload max 50Mbps |
|
| 3G Bands: | B2/B4/B5 DS-HSDPA: DL Max 42Mbps HSUPA: DL Max 5.76Mbos WCDMA: 384Kbps |
HSPA/UMTS: Band 1/2/3/4/5/8 Download Cat 24: 42Mbps Upload Cat 6: 5.76Mbps |
|
| Working Area: | North America | North America | |
| Certification: | GCF / FCC / PTCRB / IC / AT&T / Verizon / T-Mobile / Telus / Bell | FCC / IC / CE / NCC / Anatel |
American Standard
Hardware
| CPU: | Qualcomm Atheros QC9531 |
| Frequency: | 650MHz |
| Memory: | 128MB |
| Flash: | 16MB |
| SIM Card: | Standard SIM card (25x15mm) **Exclude** |
| LAN Port: | 1x10/100Mbps RJ45 port on PoE injector |
| Indicator: | Power & system |
| Consumption: | < 3 Watt |
| Temperature: | Working: -30 to 80°C Storage: -50 to 95°C |
| Humidity: | 10%~90% RH |

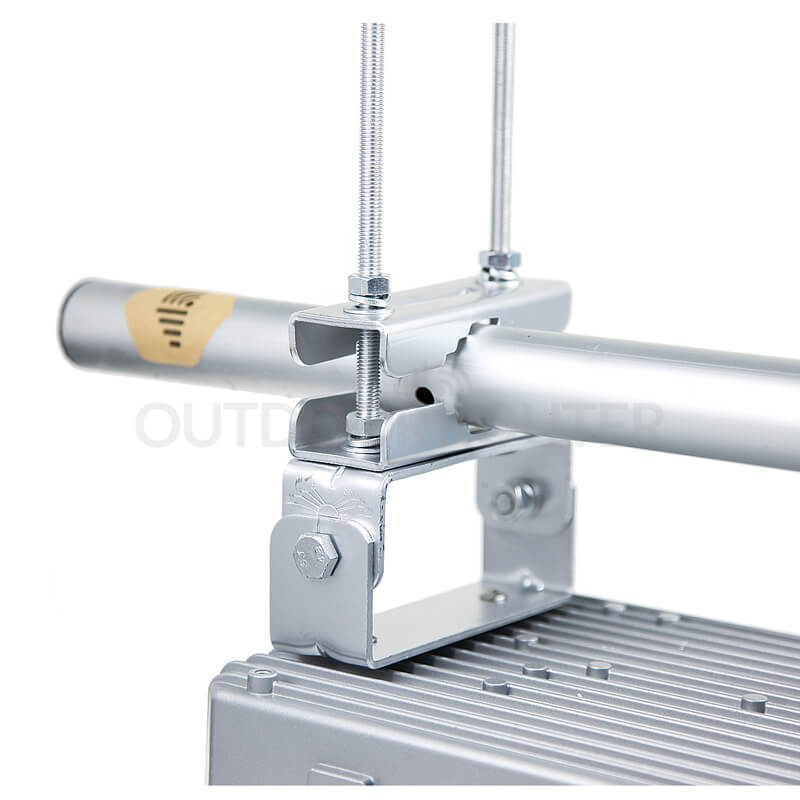

| Installation: | Pole mounted |
External Antenna
| 4G Omni Antenna: | Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.5 |
| Wi-Fi Antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.5 |
| Measurement: | Φ21×178mm |
| Connector: | N-male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
Wi-Fi Booster
| Wi-Fi standards: | IEEE 802.11 b/g/n & IEEE 802.3u |
| Transmission rate: | 300Mbps by 2T2R MIMO Wi-Fi |
| Frequency: | 2412~2484 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11n: 23±2dBm for OFDM mode 802.11g: 25±2dBm for OFDM mode 802.11b: 27±2dBm for CCK mode |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
Software
| Bootloader: | U-Boot v1.1.3 |
| Firmware: | OpenWrt v15.05.01 |
| Computer: | Windows XP Vista 7 8/8.1 MAC OS OS X10.7+ |
PoE
| Input power: | PoE: 48Volt |
| PoE standard: | 802.3af/at |
| Cable length: | Support 100 meters |
| Wiring: | Ethernet 1,2,3,6 / DC+ 4,5 / DC- 7,8 |
